XFP Module

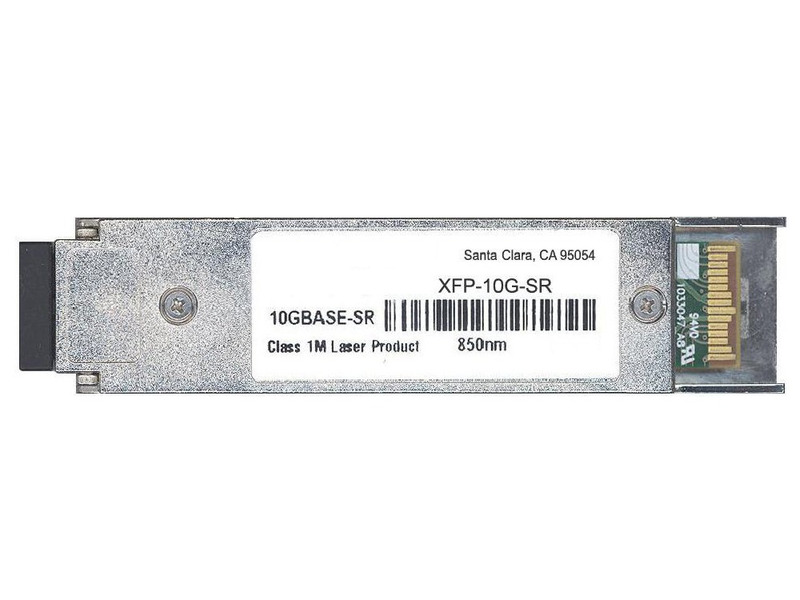

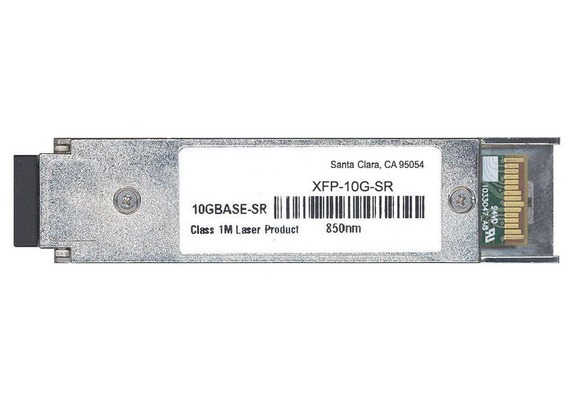

10GBASE-SR XFP Modul MM LC 300m Datenreichweite (850nm)Cisco kompatibel
P/N: TDE-XFP-10G-SR
10GBASE-SR XFP Modul MM LC 300m Datenreichweite (850nm)Cisco kompatibel
Technische Daten
Features
• Vollständig konform zu XFP MSA Rev.4.5
• Unterstützung von IEEE 802.3ae 10GBASE-SR bei 10.3125Gbit/s
• Fügsamkeit zum Faser-Kanal
1200-M5-SN-l, 1200-M5E-SN-l,
1200-M6-SN-l bei 10.51875Gbit/s
• Übertragungsentfernung bis
300m mit OM3 MMF
82m mit OM2 MMF
33m mit OM1 MMF
• Schwachstromverbrauch 1.5W (typ.)
• Breiter Betriebstemperaturbereich: Industrie: -40°C bis +85°C
• Laser Klasse 1M konform
• Vertikaler aussendender Kavitäts Oberflächen Laser bei 850nm (VCSEL)
• LC Duplex Stecker
• XFI loopback Unterstützung
• Lead free und RoHS konform
• Exzelllente EMI Performance
• Hohe Zuverlässigkeit
| Feature | Standard | Performance |
|---|---|---|
| Electrostatic Discharge (ESD) to the Electrical Pins | MIL-STD-883G Method 3015.7 |
Class 1C (>1000 V) |
| Electrostatic Discharge to the enclosure | EN 55024:1998+A1+A2 IEC-61000-4-2 GR-1089-CORE |
Compatible with standards |
| Electromagnetic Interference (EMI) | FCC Part 15 Class B EN55022:2006 CISPR 22B :2006 VCCI Class B |
Compatible with standards Noise frequency range: 30 MHz to 6 GHz. Good system EMI design practice required to achieve Class B margins. System margins are dependent on customer host board and chassis design. |
| Immunity | EN 55024:1998+A1+A2 IEC 61000-4-3 |
Compatible with standards. 1kHz sine-wave, 80% AM, from 80 MHz to 1 GHz. No effect on transmitter/receiver performance is detectable between these limits. |
| Laser Eye Safety | FDA 21CFR 1040.10 and 1040.11 EN (IEC) 60825-1:2007 EN (IEC) 60825-2:2004+A1 |
CDRH compliant and Class I laser product. TüV Certificate No. 50135086 |
| Component Recognition | UL and CUL EN60950-1:2006 |
UL file E317337 TüV Certificate No. 50135086 (CB scheme ) |
| Rating | Conditions | Symbol | Min. | Max. | Unit |
|---|---|---|---|---|---|
| Storage Ambient Temperature Range | -40 |
+85 |
°C |
||
| Powered case Temperature Range | XFP-10G-SR | TA | -40 |
+85 |
°C |
| Operating Relative Humidity | RH |
8 |
80 |
% |
|
| Supply Voltage Range at 5.0V | Vcc5 |
0.5 |
6.0 |
V |
|
| Supply Voltage Range at 3.3V | Vcc3 | 0.5 |
3.6 |
V |
|
| Open Drain VCC level | VOD |
4.0 |
V |
||
| Static Discharge Voltage on XFI High | HBM human body model per JEDEC JESD22-A114-B |
500 |
V |
||
| Static Discharge Voltage excluding XFI High Speed Pins | HBM human body model |
2,000 |
V |
||
| Static Discharge Voltage on XFP Module | EN61000-4-2 Criterion B: Air Discharge Direct Contact discharge |
15,000 8,000 |
V V |
| Parameter | Conditions | Symbol | Min. | Typ. | Max. | Units |
|---|---|---|---|---|---|---|
| Operating Case Temperature Range | XFP-10G-SR-AS | TA | -40 | +85 | °C | |
| Transceiver total Power Consumption | PTOT | 1.5 | 2.3 | W | ||
| Power Supply Voltage at 5.0V | Vcc5 | 4.75 | 5.00 | 5.25 | V | |
| Power Supply Voltage at 3.3V | Vcc3 | 3.135 | 3.300 | 3.465 | V | |
| Supply Current | at Vcc5 | Ivcc5 | 50 | 100 | mA | |
| Supply Current | at Vcc3 | Ivcc3 | 325 | 500 | mA |
| Parameter | Conditions | Symbol | Min. | Max. | Units |
|---|---|---|---|---|---|
| Baud Rate nominal | 9.95 | 10.71 | Gbd | ||
| Baud Rate Tolerance | -100 | +100 | ppm |
| Parameter | Conditions | Symbol | Min. | Typ. | Max. | Units |
|---|---|---|---|---|---|---|
| Single Ended Output Impedance | ZSE | 40 | 50 | 60 | Ω | |
| Differential Output Impedance | ZOD | 80 | 100 | 120 | Ω |
| Parameter | Conditions | Symbol | Min. | Max. | Units |
|---|---|---|---|---|---|
| Differential Output Amplitude |
VSOPP | 340 | 850 | mV | |
| Output Common Mode | VCM | 0 | 3.6 | V | |
| Transition Time Low to High | tr | 24 | ps | ||
| Transition Time Low to Low |
tf | 24 | ps | ||
| Differential Output Return Loss | 0.05—0.1GHz 0.1—5.5GHz 5.5—12GHz |
20 8 See 1) |
dB dB dB |
||
| Common Mode Output Return Loss 2 ) |
SCC 22 | 3 | dB | ||
| Total Peak-to-peak Jitter | Dj | 0.34 | UI | ||
| Output AC Common Mode Voltage | 15 | mV (RMS) |
1) SDD22(dB)=8-20.66 log10(f15.5) with fin GHz
2) Common mode reference impedance is 25Ω.
Common mode return loss helps absorb reflection and noise improving EMI.
| Parameter | Conditions | Symbol | Min. | Typ. | Max. | Units |
|---|---|---|---|---|---|---|
| Differential Output Impedance | RIND | 80 | 100 | 120 | Ω | |
| Input AC Common Mode Input Voltage | 0 | 25 | mV (RMS) | |||
| Source to Sink DC Potential Difference | VCM | 0 | 3.6 | V |
| Parameter | Conditions | Symbol | Min. | Max. | Units |
|---|---|---|---|---|---|
| Differential input Voltage Swing | VID | 120 See 2) |
mV | ||
| Differential Return Loss | 0.05—0.1GHz 0.1—5.5GHz 5.5—12GHz |
SDD11 |
20 8 See 1) |
dB |
|
| Common Mode Return Loss | 0.1—15GHz | SCC11 | 3 | dB | |
| Total Jitter | Tj | TBD | UI |
1) SDD11(dB)=8-20.66 log10(f15.5) with f in GHz
2) Beneath this level the signal can’t meet the specification Optical Characteristics
| Parameter | Conditions | Symbol | Min. | Typ. | Max. | Units |
|---|---|---|---|---|---|---|
| Nominal Wavelength | TRP | 840 | 850 | 860 | nm | |
| Spectral Width | λ | 0.4 | 0.45 | nm | ||
| Operating Range | 62.5/125μm MMF 50/125μm MMF 62.5/125μm MMF 50/125μm MMF 50/125μm MMF |
160 400 200 500 2000 |
IOP | 2 2 2 2 2 |
26 66 33 82 300 |
|
| Nominal Signalling Speed | fOPT | 10.71 | ||||
| Launch Power | in OMA | PoptOMA | -4.3 | dBm | ||
| Average Launch Power | Poptavg | -7.3 | -2.6 | -1 | dBm | |
| Extinction Ratio | ER | 3.5 | 5.5 | dB | ||
| Relative Intensity Noise | RIN | -128 | dB/Hz |
| Parameter | Conditions | Symbol | Min. | Typ. | Max. | Units |
|---|---|---|---|---|---|---|
| Center Wavelength | C | 840 | 850 | 860 | nm | |
| Receiver Sensitivity | in OMA, BER 10-12 at 31_1 |
PIN | -13.5 | -11.1 | dBm | |
| Stressed Receiver Sensitivity | in OMA | IN | -7.5 | dBm | ||
| Saturation Input Power | SAT | 1 | dBm |
