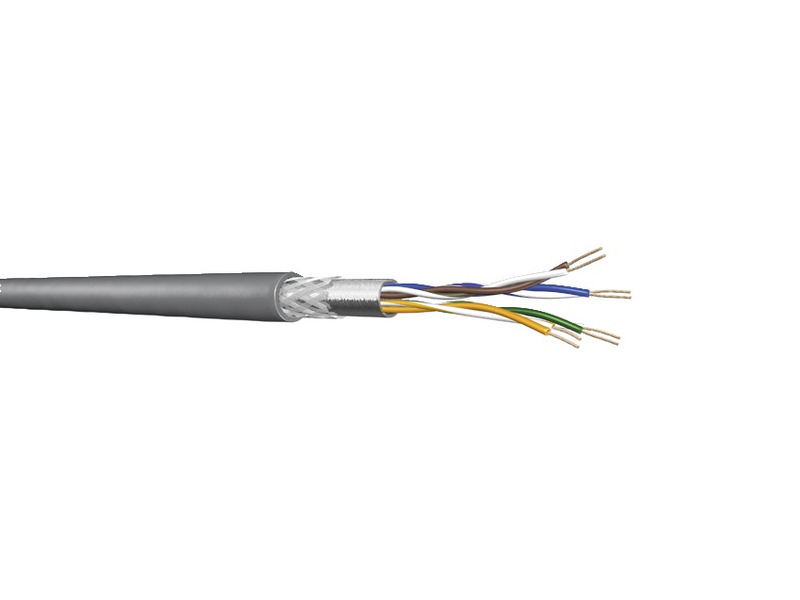

Draka - UC300 HS26 Cat.5e SF/UTP Colour: xx
P/N: UC300-HS26xx
Description
Symmetrical 100 Ω data transmission cables from Universal Cable line UC.. acc. to ISO/IEC 11801, EN 50173 and EIA/TIA 568A are used for high speed data transmission, mainly in secondary and horizontal cabling in standardised, manufacturer-independent local networks (LAN), ranging from Token Ring, Ethernet, ISDN, TPDDI, Fast-Ethernet 100Base-TX to ATMand Gigabit-Ethernet 1000Base-T and CATV. All shielded cables of line UC400 and up are ready for 10 Gigabit Ethernet (IEEE802.3: 10GBase-T).
Technical data
Application
Work area and patch cord cable
IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T;
IEEE 802.5 16 MB; ISDN; TPDDI; ATM
Standards
EN 50173-1; EN 50288-2-2
ISO/IEC 11801; IEC 61156-6
TIA/EIA-568-B.2
Flame resistance
LSHF (LSOH): IEC 60332-1; IEC 60754-2; IEC 61034
| Conductor | stranded bare copper wire Ø 0.48 mm (AWG 26) | |
| Insulation |
Polyethylene, Ø 0.95 mm | |
| Twisting |
2 cores to the pair | |
| Cable lay up | 4 pairs to the core | |
| Sreen | Al-laminated plastic foil + Copper braid, tinned | |
| Sheath |
PVC or LSHF(FRNC) | |
| Minimum bending radius |
Without load |
≥ 25 mm |
| With load | ≥ 50 mm | |
| Temperature range |
During operation |
-20°C up to +60°C |
| During installation | 0°C up to +50°C |
| Loop resistance | ≤ 260 Ω/km | |
| Resistance unbalance | ≤ 3% | |
| Insulation resistance | 500 V | ≥ 2000 MΩkm |
| Mutual capacitance | at 800 Hz | Nom. 48 nF/km |
| Capacitance unbalance | (pair/ground) | ≤ 1500 pF/km |
| Characteristic impedance | (1-100 MHz) | (100 ± 15) Ω |
| Nominal velocity of propagation | ca. 67% | |
| Propagation delay | ≤ 535 ns/100m | |
| Delay skew | ≤ 20 ns/100m | |
| Test voltage | (DC, 1 min) core/core and core/screen | 1000 V |
| Transfer impedance | at 1 MHz | ≤ 30 mΩ/m |
| at 10 MHz | ≤ 30 mΩ/m | |
| at 30 MHz | ≤ 50 mΩ/m | |
| Coupling attenuation | ≥ 75 dB |
| f MHZ | Attenuation dB/10m | NEXT dB | PS- NEXT dB | ELFEXT dB/100m | PS- ELFEXT dB/100m | Return loss dB |
|---|---|---|---|---|---|---|
| 1,0 | 0,3 |
71 |
68 |
68 |
65 |
23 |
| 4,0 | 0,6 |
62 |
59 |
56 |
53 |
23 |
| 10,0 | 0,9 |
56 |
53 |
48 |
45 |
23 |
| 16,0 |
1,1 |
53 |
50 |
44 |
41 |
23 |
| 20,0 |
1,3 |
51 |
48 |
42 |
39 |
23 |
| 31,2 |
1,6 |
49 |
46 |
38 |
35 |
23 |
| 62,5 |
2,4 |
44 |
41 |
32 |
29 |
23 |
| 100,0 |
3,0 |
41 |
38 |
28 |
25 |
23 |
| 125,0 |
3,3 |
40 |
37 |
26 |
23 |
23 |
| 155,5 |
3,6 |
38 |
35 |
24 |
21 |
23 |
| 175,0 |
3,9 |
37 |
34 |
23 |
20 |
|
| 200,0 |
4,1 |
36 |
33 |
22 |
19 |
|
| 250,0 |
4,4 |
35 |
32 |
20 |
17 |
|
| 300,0 |
4,8 | 34 | 31 | 16 | 13 |
Colour = xx: GR (grey), GN (green), BL (blue), GE (yellow), RT (red), OR (orange), SW (black)
