UC Data Cable - Draka Office Network Solution

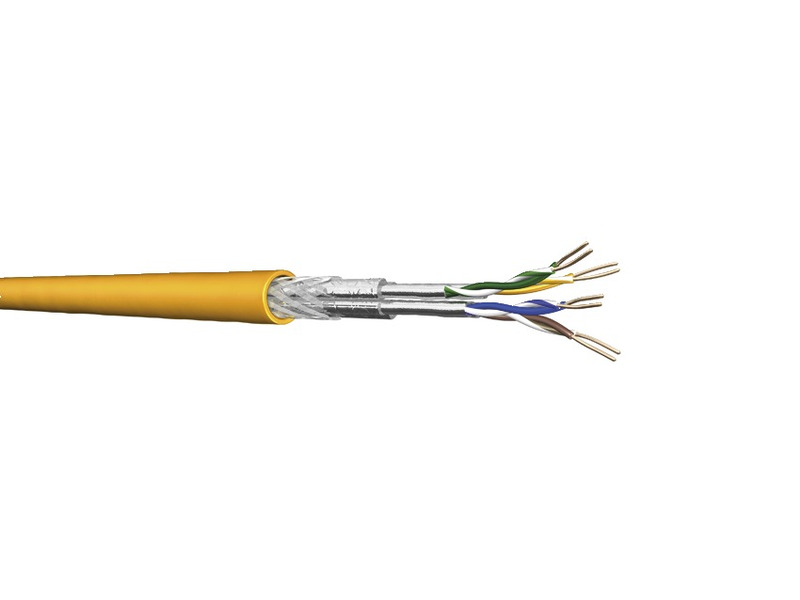

Draka - UC1500 SS22 MULTIMEDIA S/FTP

P/N: UC1500-SS22

Description

Symmetrical 100 Ω data transmission cables from Universal Cable line UC.. acc. to ISO/IEC 11801, EN 50173 and EIA/TIA 568A are used for high speed data transmission, mainly in secondary and horizontal cabling in standardised, manufacturer-independent local networks (LAN), ranging from Token Ring, Ethernet, ISDN, TPDDI, Fast-Ethernet 100Base-TX to ATMand Gigabit-Ethernet 1000Base-T and CATV. All shielded cables of line UC400 and up are ready for 10 Gigabit Ethernet (IEEE802.3: 10GBase-T).

Technical data

Application
Primary (Campus), Secondary (Riser), Tertiary (Horizontal)
IEEE 802.5; IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T
ISDN; TPDDI; ATM, CATV, Broadband Video , SOHO-Cabling

Standards
EN 50173-1; EN 50288-4-1
ISO/IEC 11801;
IEC 61156-5; IEC61156-7

Flame resistance
LSHF-FR (LSFROH): IEC 60754-2; IEC 61034; IEC 60332-1; IEC 60332-3-24

Construction:
Conductor bare copper wire Ø 0.645 mm (AWG 22)
Insulation
Foamskin PE, Ø 1.55 mm
Twisting
2 cores to the pair
Pair screen Al-laminated plastic foil,
patented wrapping of two pairs each
Cable lay up 2 x 2 pairs to the core
Sreen copper braid, tinned
Sheath
LSHF-FR melon yellow RAL 1028



Mechanical properties:
Minimum bending radius
Without load
≥ 30 mm
  With load ≥ 60 mm
Temperature range
During operation
 -20°C up to +60°C
  During installation 0°C up to +80°C



Electrical properties at 20°C
Loop resistance   Nom. 110 Ω/km
Resistance unbalance   ≤ 2%
Insulation resistance 500 V ≥ 5000 MΩ*km
Mutual capacitance at 800 Hz Nom. 43 nF/km
Capacitance unbalance (pair/ground) ≤ 1500 pF/km
Characteristic impedance (1-100 MHz) (100 ± 15) Ω
  (100-250 MHz) (100 ± 10) Ω
  (250-600 MHz) (100 ± 15) Ω
  (600-1200 MHz) (100 ± 20) Ω
Nominal velocity of propagation   ca. 79%
Propagation delay   ≤ 427 ns/100m
Delay skew   ≤ 9 ns/100m
Test voltage (DC, 1 min) core/core and core/screen 1000 V
Transfer impedance at 1 MHz 5 mΩ/m
  at 10 MHz 2 mΩ/m
  at 30 MHz 2 mΩ/m
  at 100 MHz 10 mΩ/m
Coupling attenuation   85 dB



Electrical Data (nominal) acc. to Cat.7 (at 20°C)
f


MHZ		 Attenuation


dB/100m		 NEXT


dB		 PS-
NEXT

dB		 ACR


dB/100m		 PS-ACR


dB/100m		 ELFEXT


dB/100m		 PS-
ELFEXT

dB/100m		 Return loss

dB
1,0 1,7 115 112 113 110 105 102 24
4,0 3,3 115 112 112 109 105 102 27
10,0 5,1 115 112 110 107 97 94 30
16,0
 6,5 115 112 108 105 93 90 30
20,0
 7,3 115 112 108 105 91 88 30
31,2
 9,1 115 112 106 103 87 84 30
62,5
 12,8 114 111 102 99 81 78 30
100,0
16,3 111 108 95 92 77 74 30
125,0
 18,2 110 107 92 89 75 72 26
155,5
 20,3 109 106 88 85 73 70 26
175,0
 21,5 108 105 86 83 72 69 25
200,0
 23,0 107 104 84 81 71 68 25
250,0
 25,8 105 102 80 77 69 66 24
300,0
 28,3 104 101 76 73 67 64 24
600,0 40,2 100 97 60 57 61 58 22
900,0 49,4 97 94 48 45 58 55 20
1000,0 52,1 96 93 44 41 57 54 20
1200,0 57,1 95 92 38 35 55 52 20
1500,0 64,1 94 91 30 27 53 50 19
P/N Description
UC1500-SS22     Draka - UC1500 SS22 MULTIMEDIA S/FTP
