NewLine

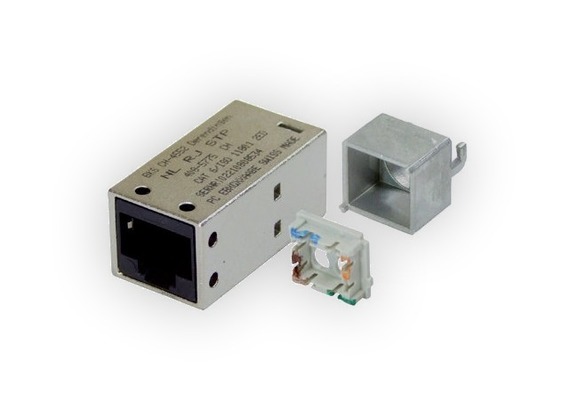

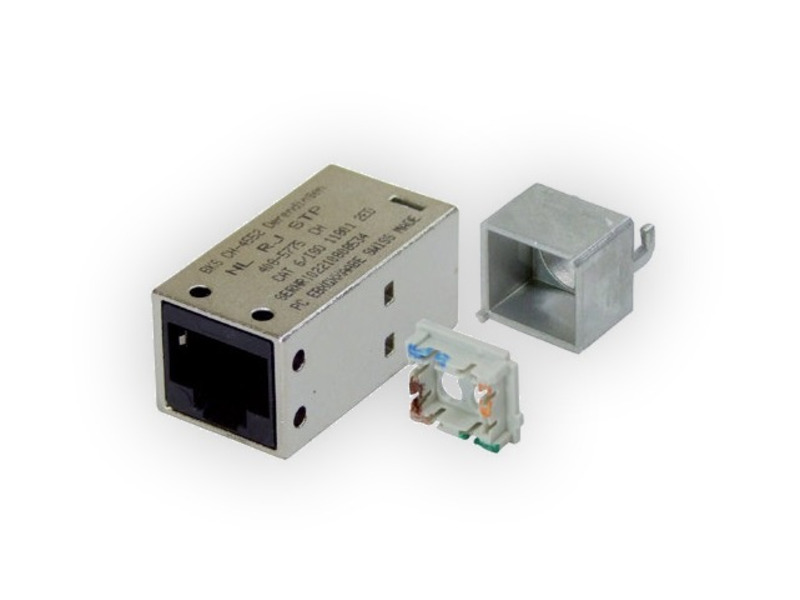

TP RJ45 Jack, shielded, 3-parts, for 10GBit Ethernet, Cat. 6
P/N: RJ
Description
The NewLine system includes the NewLine MMC3000pro modular sockets for multimedia applications, NewLine RJ and NewLine RJpro for class EA applications, in line with ISO/IEC 11801 for 10 Gigabit Ethernet via copper, and NewLine RJ250 for class E applications in shielded and unshielded design. Because of the compact structure it is possible to integrate the high-performance sockets into connection units of the highest packing density. NewLine wall outlets accommodate up to 3 sockets. In addition to the standard panels with 16, 24 and 32 ports, we can also offer you a 48-port panel on only one rack unit.
RJ45 Jack, shielded, 3-parts, Cat. 6, EA Applications, 10GBit Ethernet, 500MHz, after ISO/IEC 11801 Cat 6A EIA/TIA-568B. 2-10
Technical data
Construction
• Full metal housing
• 3-parts jack set
• Cutting-Clamp technique, gasproof
• Shielding: 360°
• Recommended conductor dimensions: AWG 22 und 23
• Color coding
| Typ: | RJ45 |
| Housing: | ZN |
| Surface: | Cu under Ni |
| Contact: | Brass Ni / Ag 0.8μm |
| Cutcontact: | Beryllium Cu / Sn |
| Mating cycles: | > 750 |
| Contact resistance: | 4,3 mOhm typ. |
| Insulation resistance: | > 500MOhm |
| Operating current: | 0.63 A max. |
| Outer diameter: | AWG24-AWG22 |
