TP Patch Cords

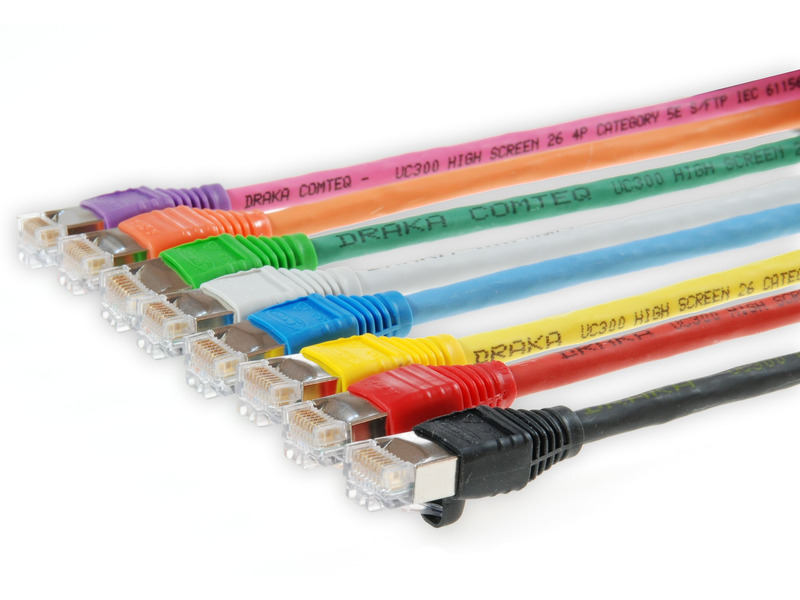

SFTP Patch cord RJ45/RJ45 AMP EMT Cat.5e UC300 LSHF Length: xxxx
P/N: SF-A6yy-Nzzxxxx
SFTP Patch cord RJ45/RJ45 AMP EMT Cat.5e UC300 LSHF Length: xxxx
Description
RJ45 Patch cord for the employment in the distribution frame or for the connection of terminals.
Technical data
| Cabletype | Draka UC300 HS26 Cat.5e |
| Configuration | 1:1 |
| Tests | Link Performance Tests, electrical test on short-circuit and visual final inspection |
| QS-Managementsystem ISO 9001, ISO 14001 and TL 9000 |
xxxx = Length in cm
-
Type RJ45 (EMT), with integreted dwell lever protection Shielding shielded Manufacturer AMP/Tyco yy - Boot color BG - Beige BL - Blue GE - Yellow GN - Green RT - Red SW - Black WS - White -
Construction Conductor stranded bare copper wire Ø 0.48 mm (AWG 26) Insulation Polyethylene, Ø 0.95 mm Twisting 2 cores to the pair Cable lay up 4 pairs to the core Sreen Al-laminated plastic foil + Copper braid, tinned Sheath PVC or LSHF (FRNC) Mechanical properties Minimum bending radius Without load ≥ 25 mm With load ≥ 50 mm Temperature range During operation -20°C up to +60°C During installation 0°C up to +50°C Electrical properties at 20°C ± 5°C Loop resistance ≤ 260 Ω/km Resistance unbalance ≤ 3% Insulation resistance 500 V ≥ 2000 MΩkm Mutual capacitance at 800 Hz Nom. 48 nF/km Capacitance unbalance (pair/ground) ≤ 1500 pF/km Characteristic impedance (1-100 MHz) (100 ± 15) Ω Nominal velocity of propagation ca. 67% Propagation delay ≤ 535 ns/100m Delay skew ≤ 20 ns/100m Test voltage (DC, 1 min) core/core and core/screen 1000 V Transfer impedance at 1 MHz ≤ 30 mΩ/m at 10 MHz ≤ 30 mΩ/m at 30 MHz ≤ 50 mΩ/m Coupling attenuation ≥ 75 dB Electrical Data (nominal) acc. to Cat.5e (at 20°C) F
MHZAttenuation
dB/10mNEXT
dBPS-
NEXT
dBELFEXT
dB/100mPS-
ELFEXT
dB/100mReturn
loss
dB1.0 0.3 71 68 68 65 23 4.0 0.6 62 59 56 53 23 10.0 0.9 56 53 48 45 23 16.0 1.1 53 50 44 41 23 20.0 1.3 51 48 42 39 23 31.2 1.6 49 46 38 35 23 62.5 2.4 44 41 32 29 23 100.0 3.0 41 38 28 25 23 125.0 3.3 40 37 26 23 23 155.5 3.6 38 35 24 21 23 175.0 3.9 37 34 23 20 200.0 4.1 36 33 22 19 250.0 4.4 35 32 20 17 300.0 4.8 34 31 16 13 Outerdiameter 5.7 mm Fire load 369 MJ/km 0.103 kWh/m Weight 37 kg/km Copper content 22.5 Tensile force 100 N Colour = zz: GR (grey), GN (green), BL (blue), GE (yellow), RT (red), OR (orange), SW (black)
