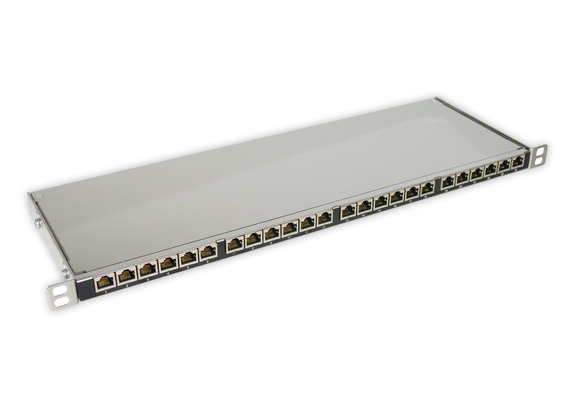

tBL - Patch panel 24x RJ45/LSA+ Cat.6A 19"/0,5U stainless steel + bracket 0,5U
P/N: TBL-19-1/2HE-24RJ45
tBL - Patch panel 24x RJ45/LSA+ Cat.6A 19"/0,5U stainless steel + bracket 0,5U
Description
tBL - Patch panel 24x RJ45/LSA+ Cat.6A 19"/0,5U is particularly for use with UC900 or UC1500 data cables.
Technical data
| Housing: | stainless steel |
| Frontplate: | stainless steel |
| Inscription: | port numbering (silkscreen) |
| Shield contact: | 360°-shield tapping over cable clamp |
| Strain relief: | cable clamp and cable tie |
| Board: | 4x boards with 6x ports |
| Connection: | 24x RJ45 jacks Cat.6A (with patented dual compensation technology on a flexible circuit board from Bel Stewart) |
| 24x LSA Plus - wire size range AWG 22 - 26 |
|
| Mating cycle: | minimum 750 mating cycles (RJ45) |
| Pin out: | according to TIA/EIA 568A and 568B |
| Application: | up to 10 Gigabit-Ethernet according to IEEE 802.3an |
| PoE and PoE plus according to IEEE 802.3at | |
| Dimensions: | 19", 0,5U, 170mm deep |
