Draka - UC900 SS23 Cat.7 S/FTP, PE for industrial applications

P/N: UC900-SS23-PE

Technical data

Application
Primary (Campus), Secondary (Riser), Tertiary (Horizontal)
IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T
IEEE 802.5 16 MB; ISDN; TPDDI; ATM

Standards
EN 50173-1; EN 50288-4-1
ISO/IEC 11801; IEC 61156-5

Construction:
Conductor bare copper wire, Ø 0.56 mm (AWG 23)
Insulation
foamskin PE, Ø 1.4 mm
Twisting
2 cores to the pair
Pair screen
 Al-laminated plastic foil

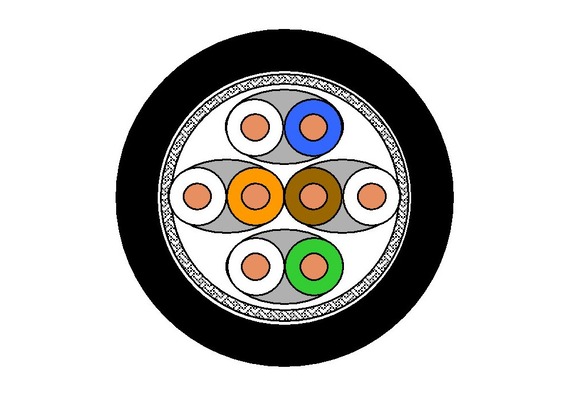

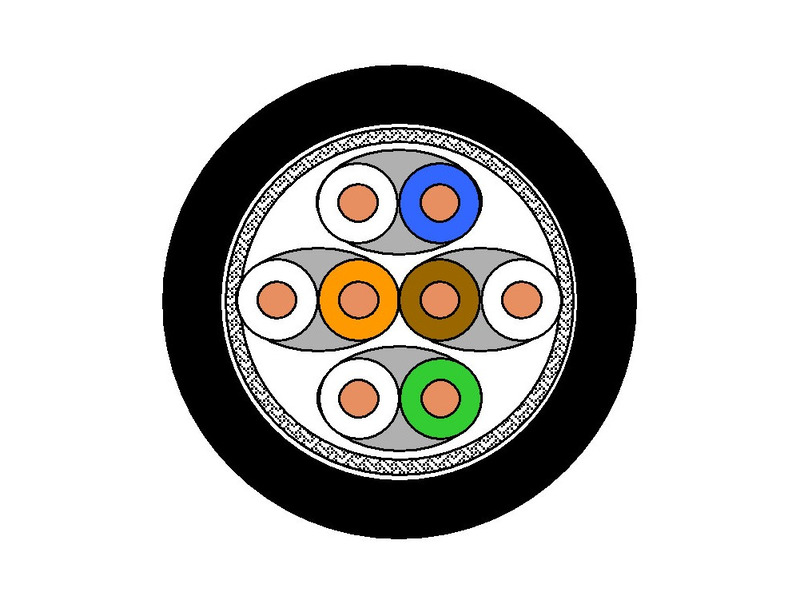

Cable lay up 4 pairs (PiMF) to the core
Screen
copper braid, tinned
Sheath
PE, black, for outdoor installation

Mechanical properties:
Bending radius
without load
≥ 40 mm
  with load ≥ 80 mm
Temperature range
during operation
 -55°C to +60°C
  during installation -20°C to +50°C

Electrical properties at 20°C ± 5°C
Loop resistance   ≤ 165 Ω/km
Resistance unbalance   ≤ 2%
Insulation resistance (500 V) ≥ 5000 MΩkm
Mutual capacitance at 800 Hz Nom. 43 nF/km
Capacitance unbalance (pair/ground) ≤ 1500 pF/km
Characteristic impedance (1-100) MHz (100 ± 15) Ω
  (100 - 250) MHz (100 ± 18) Ω
  (250 - 600) MHz (100 ± 25) Ω
Nominal velocity of propagation   ca. 79%
Propagation delay   ≤ 427 ns/100m
Delay skew   ≤ 12 ns/100m
Test voltage (DC, 1 min) core/core and core/screen 1000 V
Transfer impedance at 1 MHz 10 mΩ/m
  at 10 MHz 10 mΩ/m
  at 30 MHz 30 mΩ/m
  at 100 MHz 60 mΩ/m
Coupling attenuation   85 dB

Electrical data (nominal) acc. to Cat.7 (at 20°C)
f

MHZ		 Attenuation

dB/100m		 NEXT

dB		 PS-NEXT

dB		 ACR

dB/100m		 PS-ACR

dB/100m		ELFEXT

dB/100m		 PS-ELFEXT

dB/100m		 Return loss

dB
1 1,8 100 97 98 95 105 105 27
4 3,4 100 97 97 94 105 102 30
10 5,4 100 97 95 92 97 94 30
16 6,8 100 97 93 90 93 90 30
20 7,7 100 97 92 89 91 88 30
31,2 9,6 100 97 90 87 87 84 30
62,5 13,7 100 97 86 83 81 78 30
100 17,4 100 97 83 80 77 74 30
125 19,5 95 92 75 72 75 72 26
155,5 21,9 94 91 72 69 73 70 26
175 23,3 93 90 70 67 72 69 25
200 25,0 92 89 67 64 71 68 25
250 28,1 90 87 62 59 69 66 24
300 30,9 89 86 58 55 67 64 24
450 38,3 87 84 48 45 64 61 23
600 44,8 85 82 40 37 61 58 22
750 52,0 83 80 31 28 59 56 21
900 59,4 82 79 23 20 58 55 20
1000 63,1 80 77 17 14 57 54 20
P/N Description
UC900-SS23-PE     Draka - UC900 SS23 Cat.7 S/FTP, PE for industrial applications
