Draka - UC FUTURE COMPACT AWG26 Cat.7 S/FTP 6x4P LSHF

P/N: UC-COMPACT26X6x4P

Description

Data centre cabling 10Gbit solution. Pair screened 100 Ohms cable especially for Zone Distribution Area and Equipment Distribution Area.

Technical data

Application
IEEE 802.3: 10Base-T; 100Base-T; 10GBase-T, ISDN; xDSL
IEEE 802.5 16 MB; ISDN; TPDDI; ATM155Mbit/s
The conductor diameter is smaller compared to the standard installation cables. This leads to an increased attenuation and therefore the
operating distance is reduced (60 m instead of 90 m installation cable in standard permanent link).

Standards
IEC 61156-6 work area cable
ISO/IEC 11801 2nd ed.
EN 50173-5
EN 50288-4-2

Flame resistance
PVC IEC 60332-1
LSHF IEC 60332-1, IEC 60754-2, IEC 61034

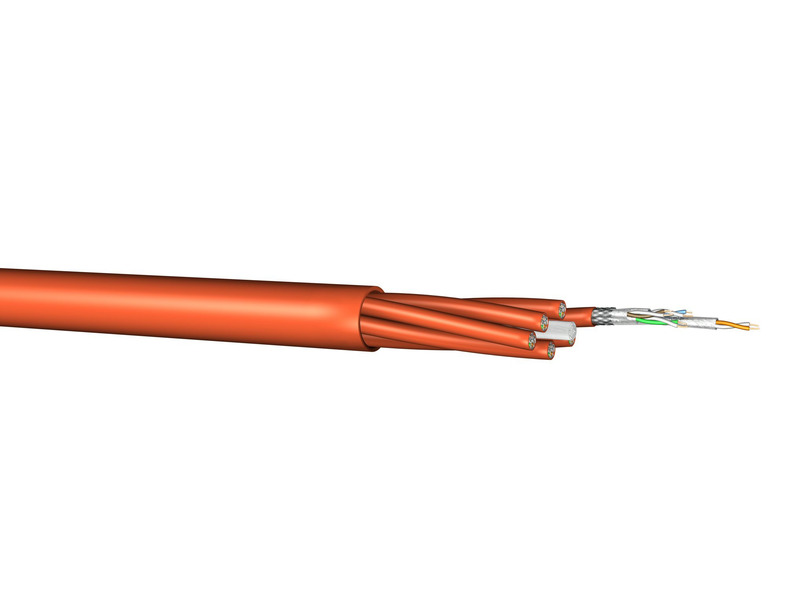

Construction:
Conductor Bare copper wire, Ω 0.4 mm (AWG26)
Insulation
Foam skin PP, diameter 1.0 mm (+/- 0,05)
Twisting
2 cores to the pair
Pair screening
Al-laminated plastic foil
Cable lay up 4x pimf to the core
Cable Screen
Tinned copper braid, coverage approx. 60%
Sheath
LSHF orange RAL 2003
Stranding (6x) 0+6 stranded to the cable core, filler in the centre



Mechanical properties:
Minimum bending radius
Without load
8xD
  With load 4xD
Temperature range
During operation
 -20°C up to +60°C
  During installation  10°C up to +40°C



Electrical properties at 20°C
Loop resistance   ≤ 280 Ω/km
Resistance unbalance   ≤ 2%
Test voltage core/core
 1000 VDC 1 min
  core/screen 1000 VDC 1 min
Capacitance 800 Hz Nom. 44 nF/km
Capacitance unbalance   ≤ 1600 pF/km
Impedance 100 MHz 100 Ω ± 15 Ω
Nominal velocity of propagation   ca. 76%
Insulation resistance 500 V ≥ 2000 MΩkm
Coupling attenuation   ≥ 85 dB



Electrical Data (nominal) acc. to Cat.7 (at 20°C)
f


MHZ		 Atten-
uation

dB/10m		 NEXT


dB		 PS-
NEXT

dB		 ELFEXT


dB/100m		 PS-
ELFEXT

dB/100m		 Return
loss

dB
1,0 0,3
 90
 87
 80
 77
 23
4,0 0,6
 90
 87
 80
 77
 24
10,0 1,0
 90
 87
 80
 77
 25
16,0
 1,3
 90
 87
 76 73 25
20,0
 1,4
 90
 87
 74 71 25
31,2
 1,8
 90
 87
 70 67 25
62,5
 2,6 90 87 64 61 23
100,0
3,2
 87
 84 60 57 21
125,0
 3,6
 85
 82 58 55 20
155,5
 4,0
 84
 81 56 53 19
175,0
 4,3
83 80 55 52 19
200,0
 4,6 82 79 54 51 18
250,0
 5,1
 81 78 52 49 18
300,0
 5,6
 80 77 50 47 17
450,0
 6,9 77 74 47 44 17
600,0
 7,9 75 72 44 41 17

Technical Data
Designation Type Outer diameter

mm

Fire load

MJ/km

Fire load

kWh/m

 Weight


kg/km		 Copper content

kg/km

Tensile force

N
J-09YS(ST)CHH 6x4x2x0,4 PiMF 17,8 3460 0,96 310 132 700
P/N Description
UC-COMPACT26X6x4P     Draka - UC FUTURE COMPACT AWG26 Cat.7 S/FTP 6x4P LSHF
