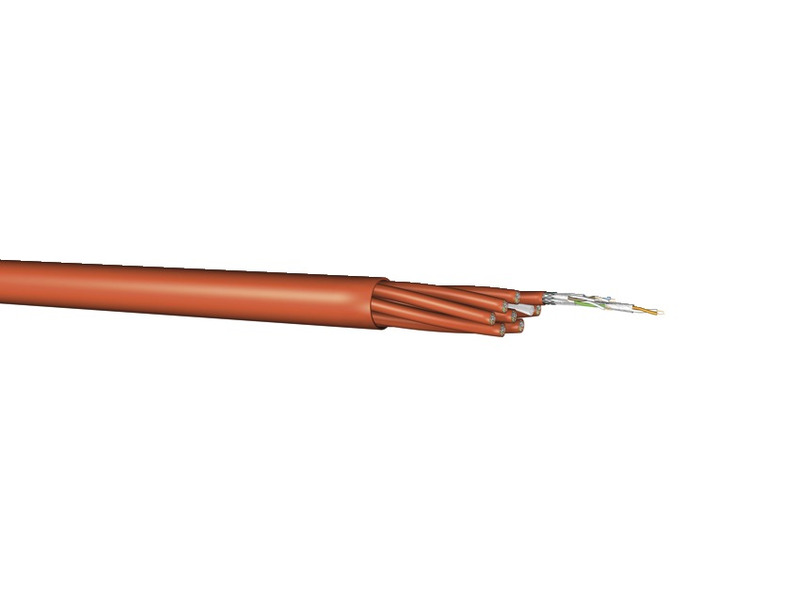

Draka - UC FUTURE COMPACT AWG23 Cat.7 S/FTP 8x4P LSHF

P/N: UC-COMPACT23X8x4P

Draka - UC FUTURE COMPACT AWG23 Cat.7 S/FTP 8x4P LSHF

Description

Data centre cabling 10Gbit solution. Pair screened 100 Ohms cable especially for Zone Distribution Area and Equipment Distribution Area.

Technical data

Application
IEEE 802.3: 10Base-T; 100Base-T; 10GBase-T, ISDN; xDSL
IEEE 802.5 16 MB; ISDN; TPDDI; ATM155Mbit/s
The conductor diameter is smaller compared to the standard installation cables. This leads to an increased attenuation and therefore the
operating distance is reduced (80 m instead of 90 m installation cable in standard permanent link).

Standards
ISO/IEC 11801 2^nd ed.
EN 50173-5
IEC 61156-5
EN 50288-4-1

Flame resistance
LSHF (FRNC): IEC 60332-1; IEC 60754-2; IEC 61034

**Construction:**
Conductor	Bare copper wire, Ø 0.56 mm (AWG23)
Insulation	Foam-skin PP, Ø 1.35 mm
Twisting	2 cores to the pair
Pair screening	Al-laminated plastic foil
Cable lay up	4x pimf to the core
Cable Screen	Tinned copper braid, coverage approx. 35%
Sheath	LSHF, orange RAL 2003
Stranding	8 stranded to the cable core, filler in the centre

**Mechanical properties:**
Minimum bending radius	Without load	8 x Outer Diameter
	With load	4 x Outer Diameter
Temperature range	During operation	-20°C up to +60°C
	During installation	0°C up to +50°C

**Electrical properties at 20°C**
Loop resistance		≤ 176 Ω/km
Resistance unbalance		≤ 2%
Insulation resistance	500 V	≥ 2000 MΩ*km
Mutual Capacitance	at 800 Hz	Nom. 43 nF/km
Capacitance unbalance	(pair/ground)	≤ 1500 pF/km
Impedance	100 MHz	100 Ω ± 5 Ω
Nominal velocity of propagation		Ca. 79%
Propagation delay	Nominal	< 450 ns/100m
Delay skew	Nominal	< 15 ns/100m
Nominal velocity of propagation		ca. 79%
Test voltage	(DC, 1 min) core/core and core/screen	1000 V
Coupling attenuation		≥ 85 dB

**Electrical Data (nominal) acc. to Cat.7 (at 20°C)**
f MHZ	Atten- uation dB/90m	NEXT dB	PS- NEXT dB	ACR dB/100m	PS-ACR dB/100m	ELFEXT dB/100m	PS- ELFEXT dB/100m	Re- turn loss dB
1,0	1,8	100	97	98	95	105	105	-
4,0	3,4	100	97	97	94	105	102	27
10,0	5,4	100	97	95	92	97	94	30
16,0	6,8	100	97	93	90	93	90	30
20,0	7,7	100	97	92	89	91	88	30
31,2	9,6	100	97	90	87	87	84	30
62,5	13,7	100	97	86	83	81	78	30
100,0	17,4	100	97	83	80	77	74	30
125,0	19,5	95	92	75	72	75	72	26
155,5	21,9	94	91	72	69	73	70	26
175,0	23,3	93	90	70	67	72	69	25
200,0	25,0	92	89	67	64	71	68	25
250,0	28,1	90	87	62	59	69	66	24
300,0	30,9	89	86	58	55	67	64	24
400,0	38,3	87	84	48	45	64	61	23
500,0	43,0	86	83	43	40	61	58	22
600,0	44,8	85	82	40	37	60	57	22
