TP Cables

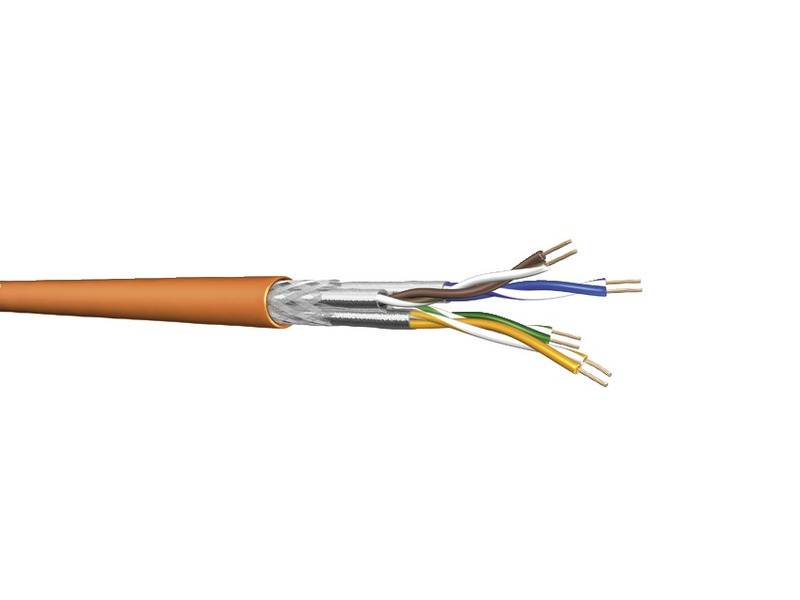

Draka - UC900 SS27 Cat.7 S/FTP 4P LSHF Colour: xx

P/N: UC900-SS27-4P-xx

Technical data

Application
IEEE 802.3: 10Base-T; 100Base-T; 10GBase-T, ISDN; xDSL
IEEE 802.5 16 MB; ISDN; TPDDI; ATM155Mbit/s
The conductor diameter is smaller compared to the standard installation cables. This leads to an increased attenuation and therefore the
operating distance is reduced (60 m instead of 90 m installation cable in standard permanent link).

Standards
IEC 61156-6 work area cable
ISO/IEC 11801 2nd ed.
EN 50173-5
EN 50288-4-2

Flame resistance
PVC IEC 60332-1
LSHF-FR IEC 60332-3-24
IEC 60754-2; IEC 61034

Construction:
Conductor stranded bare copper wire Ø 0.42 mm (AWG 27/7)
Insulation
Foam Skin Polyethylene, Ø 0.98 mm
Twisting
2 cores to the pair
Pair screen
 Al-laminated plastic foil
Cable lay up 4 pairs (PiMF) to the core
Screen
Copper braid, tinned
Sheath
PVC or LSHF, color see “Technical data”



Mechanical properties:
Minimum bending radius
Without load
 ≥ 25 mm
  With load ≥ 50 mm
Temperature range
 During operation
 -20°C up to +60°C
  During installation  10°C up to +50°C



Electrical properties at 20°C
Loop resistance   ≤ 340 Ω/km
Resistance unbalance   ≤ 3%
Insulation resistance 500 V ≥ 2000 MΩkm
Mutual capacitance at 800 Hz Nom. 43 nF/km
Capacitance unbalance (pair/ground) ≤ 1500 pF/km
Characteristic impedance (1-100 MHz) (100 ± 15) Ω
  (100 - 250) MHz (100 ± 18) Ω
  (250 - 600) MHz (100 ± 25) Ω
Nominal velocity of propagation   ca. 79%
Propagation delay   ≤ 427 ns/100m
Delay skew   ≤   12 ns/100m
Test voltage (DC, 1 min) core/core and core/screen 1000 V
Transfer impedance at   1 MHz 25 mΩ/m
  at 10 MHz 15 mΩ/m
  at 30 MHz 30 mΩ/m
Coupling attenuation   75 dB



Electrical Data (nominal) acc. to Cat.7 (at 20°C)

f


MHZ

 Attenuation


dB/10m		 NEXT


dB		 PS-
NEXT

dB		 ACR


dB/100m		 ELFEXT


dB/100m		 PS-ELFEXT


dB/100m		 Return
loss

dB
1,0 0,3 90 87 90 80 77 23
4,0 0,6 90 87 89 80 77 24
10,0 1,0 90 87 89 80 77 25
16,0
 1,3 90 87 89 76 73 25
20,0
 1,4 90 87 89 74 71 25
31,2
 1,8 90 87 88 70 67 25
62,5
 2,6 90 87 87 64 61 23
100,0
3,2 87 84 84 60 57 21
125,0
 3,6 85 82 81 58 55 20
155,5
 4,0 84 81 80 56 53 19
175,0
 4,3 83 80 79 55 52 19
200,0
 4,6 82 79 77 54 51 18
250,0
 5,1 81 78 76 52 49 18
300,0
 5,6 80 77 74 50 47 17
450,0
 6,9 77 74 70 47 44 17
600,0
 7,9 75 72 67 44 41 17
750,0 8,7 73 70 64 42 39
900,0 9,7 72 69 62 41 38
1000,0 10,2 71 68 61 40 37



Colour = xx: GR (grey), GN (green), BL (blue), GE (yellow), RT (red), OR (orange), SW (black)

P/N Description
UC900-SS27-4P-xx     Draka - UC900 SS27 Cat.7 S/FTP 4P LSHF Colour: xx
