TP Cables

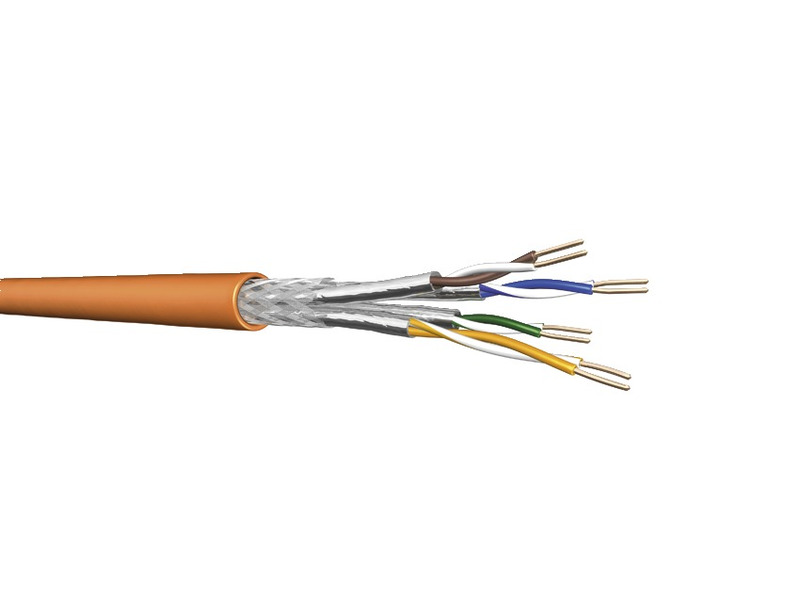

Draka - UC900 SS23 Cat.7 S/FTP 4P LSHF-(FR)

P/N: UC900-SS23-4P

Technical data

Application
Primary (Campus), Secondary (Riser), Tertiary (Horizontal)
IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T
IEEE 802.5 16 MB; ISDN; TPDDI; ATM

Standards
EN 50173-1; EN 50288-4-1
ISO/IEC 11801; IEC 61156-5

Flame resistance
LSHF (LSOH): IEC 60332-1; IEC 60754-2; IEC 61034
LSHF-FR (LSFROH): additionally IEC 60332-3-24

Construction:
Conductor bare copper wire, Ø 0.56 mm (AWG 23)
Insulation
foamskin PE, Ø 1.4 mm
Twisting
2 cores to the pair
Pair screen Al-laminated plastic foil
Cable lay up 4 pairs (PiMF) to the core
Sreen copper braid, tinned
Sheath
LSHF orange RAL 2003



Mechanical properties:
Minimum bending radius
Without load
≥ 30 mm
  With load ≥ 60 mm
Temperature range
During operation
 -20°C up to +60°C
  During installation 0°C up to +50°C



Electrical properties at 20°C
Loop resistance   ≤ 150 Ω/km
Resistance unbalance   ≤ 2%
Insulation resistance (500 V) ≥ 5000 MΩ*km
Mutual capacitance at 800 Hz Nom. 43 nF/km
Capacitance unbalance (pair/ground) ≤ 1500 pF/km
Characteristic impedance (1-100 MHz) (100 ± 5) Ω
  (100 - 250) MHz (100 ± 10) Ω
  (250 - 600) MHz
 (100 ± 15) Ω
Nominal velocity of propagation   ca. 79%
Propagation delay   ≤ 425 ns/100m
Delay skew   ≤ 9 ns/100m
Test voltage (DC, 1 min) core/core and core/screen 1000 V
Transfer impedance at 1 MHz 5 mΩ/m
  at 10 MHz 5 mΩ/m
  at 30 MHz 10 mΩ/m
  at 100 MHz 20 mΩ/m
Coupling attenuation   85 dB



Electrical Data (nominal) acc. to Cat.7 (at 20°C)
f


MHZ		 Attenuation


dB/10m		 NEXT


dB		 PS-
NEXT

dB		 ACR


dB/100m		 PS-ACR


dB/100m		 ELFEXT


dB/100m		 PS-
ELFEXT

dB/100m		 Return
loss

dB
1,0 1,8
 100
 97
 98
 95
 105
 105
 -
4,0 3,4
 100
 97
 97
 94
 105
 102
 27
10,0 5,4
 100
 97
 95
 92
 97
 94
 30
16,0
 6,8
 100
 97
 93
 90
 93
 90
 30
20,0
 7,7
 100
 97
 92
 89
 91
 88
 30
31,2
 9,6
 100
 97
 90
 87
 87
 84
 30
62,5
 13,7
 100
 97
 86
 83
 81
 78
 30
100,0
17,4
 100
 97
 83
 80
 77
 74
 30
125,0
 19,5
 95
 92
 75
 72
 75
 72
 26
155,5
 21,9
 94
 91
 72
 69
 73
 70
 26
175,0
 23,3
 93
 90
 70
 67
 72
 69
 25
200,0
 25,0
 92
 89
 67
 64
 71
 68
 25
250,0
 28,1
 90
 87
 62
 59
 69
 66
 24
300,0
 30,9
 89
 86
 58
 55
 67
 64
 24
450,0 38,3 87 84 48 45 64 61 23
600,0 44,8 85 82 40 37 61 58 22
750,0 52,0 83 80 31 28 59 56 21
900,0 59,4 82 79 23 20 59 55 20
1000,0 63,1 80 77 17 14 57 54 20
P/N Description
UC900-SS23-4P     Draka - UC900 SS23 Cat.7 S/FTP 4P LSHF-(FR)
