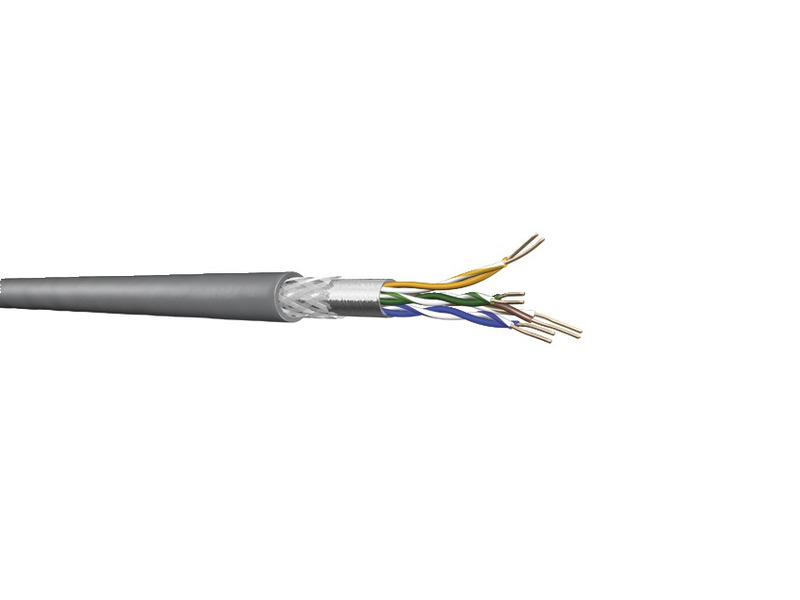

Draka - UC300 HS24 Cat.5e SF/UTP 4P (LSHF-FR)

P/N: UC300-HS24-4P

Technical data

Application
Primary (Campus), Secondary (Riser), Tertiary (Horizontal)
IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T;
IEEE 802.5 16 MB; ISDN; TPDDI; ATM

Standards
EN 50173-1; EN 50288-2-1
ISO/IEC 11801; IEC 61156-5
TIA/EIA-568-B.2

Flame resistance
PVC: IEC 60332-1
LSHF (LSOH): IEC 60332-1; IEC 60754-2; IEC 61034
LSHF-FR (LSFROH): additionally IEC 60332-3-24

Construction:
Conductor bare copper wire, Ø 0.51 mm (AWG24)
Insulation
PE, Ø 1.1 mm
Twisting
2 cores to the pair
Cable lay up 4 pairs to the core
Sreen Al-laminated plastic foil and Copper braid, tinned
Sheath
PVC alt. LSHF (FRNC, LSOH), grey RAL 7035



Mechanical properties:
Minimum bending radius
Without load
≥ 25 mm
  With load ≥ 50 mm
Temperature range
During operation
 -20°C up to +60°C
  During installation 0°C up to +50°C



Electrical properties at 20°C
Loop resistance   ≤ 190 Ω/km
Resistance unbalance   ≤ 2%
Insulation resistance (500 V) ≥ 2000 MΩ*km
Mutual capacitance at 800 Hz Nom. 48 nF/km
Capacitance unbalance   ≤ 1500 pF/km
Characteristic impedance (1-100 MHz) (100 ± 15) Ω
Nominal velocity of propagation   ca. 67%
Propagation delay   ≤ 535 ns/100 m
Delay skew   ≤ 20 ns/100 m
Test voltage (DC, 1 min) core/core and core/screen 1000 V
Transfer impedance at 1 MHz 20 mΩ /m
  at 10 MHz 20 mΩ /m
  at 30 MHz 30 mΩ /m
  at 100 MHz 60 mΩ /m
Coupling attenuation   ≥ 75 dB



Electrical Data (nominal) acc. to Cat.7 (at 20°C)
f


MHZ		 Attenuation


dB/100m		 NEXT


dB		 PS-
NEXT

dB		 ACR


dB/100m		 PS-ACR


dB/100m		 ELFEXT


dB/100m		 PS-
ELFEXT

dB/100m		 Return loss

dB
1,0 1,9
 71
 68
 69,1 66,1 68
 65
 20
4,0 3,7
 62
 59
 58,3 55,3 56
 53
 23
10,0 6,0
 56
 53
 50,0 47,0 48
 45
 25
16,0
 7,6
 53
 50
 45,4 42,5 44
 41
 25
20,0
 8,5
 51
 48
 42,5 39,5 42
 39
 25
31,2
 10,7
 49
 46
 38,3 35,3 38
 35
 24
62,5
 15,7
 44
 41
 28,3 25,3 32
 29
 22
100,0
19,8
 41
 38
 21,2 18,2 28
 25
 20
125,0
 22,3
 40
 37
 17,7 14,7 26
 23
 19
155,5
 24,2
 38
 35
 13,8 10,8 24
 21
175,0
 25,7
 37
 34
 11,3 8,3 23
 20
200,0
 27,5
 36
 33
 8,5 5,5 22
 19
250,0
 29,2
 35
 32
 5,8 2,8 20
 17
300,0
 32,0 34 31 2,0 -1,0 16 13
P/N Description
UC300-HS24-4P     Draka - UC300 HS24 Cat.5e SF/UTP 4P (LSHF-FR)
