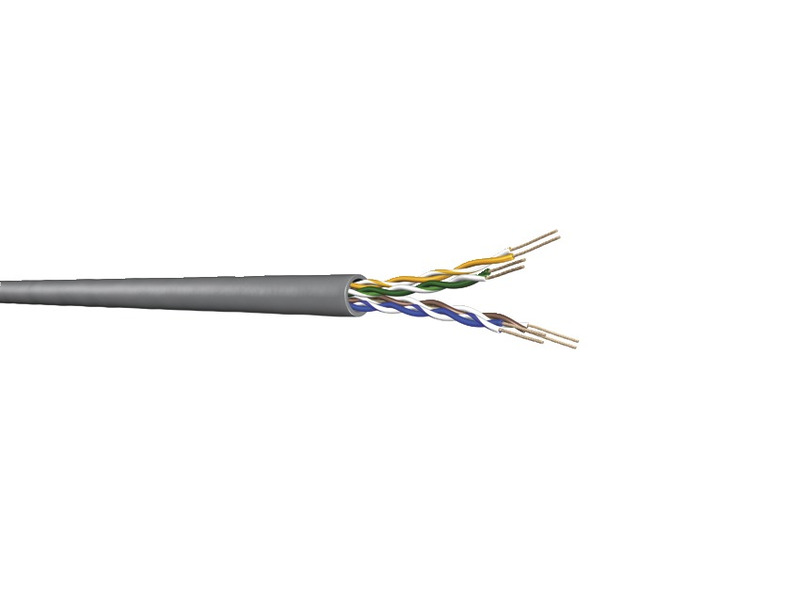

Draka - UC300 26 Cat.5e U/UTP Colour: xx
P/N: UC300-26xx
Draka - UC300 26 Cat.5e U/UTP Colour: xx
Technical data
Application
Work area and patch cord cable
IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T;
IEEE 802.5 16 MB; ISDN; TPDDI; ATM
Standards
EIA/TIA 568A;
ISO/IEC 11801 2nd ed.; IEC 61156-6
EN 50173-1; EN 50288-3-2
Flame resistance
PVC: IEC 60332-1
LSHF(FRNC): IEC 60332-1; IEC 60754-2; IEC 61034
| Conductor | stranded bare copper wire Ø 0.48 mm (AWG 26) | |
| Insulation |
Polyethylene, Ø 0.9 mm | |
| Twisting |
2 cores to the pair | |
| Cable lay up | 4 pairs to the core | |
| Sheath |
PVC or FRNC, grey RAL 7035 | |
| Minimum bending radius |
Without load |
≥ 20 mm |
| With load | ≥ 40 mm | |
| Temperature range |
During operation |
-20°C up to +60°C |
| During installation | 0°C up to +50°C |
| DC Loop resistance | ≤ 260 Ω/km | |
| Resistance unbalance | ≤ 3% | |
| Insulation resistance | 500 V | ≥ 2000 MΩ*km |
| Capacitance | at 800 Hz | Nom. 48 nF/km |
| Capacitance unbalance | (pair to ground) | ≤ 1500 pF/km |
| Characteristic impedance | (1-100 MHz) | (100 ± 15) Ω |
| Nominal velocity of propagation | approx. 67% | |
| Propagation delay | ≤ 535 ns/100m | |
| Delay skew | ≤ 20 ns/100m | |
| Test voltage Core/Core and Core/Screen |
(DC, 1 min) | 1000 V |
| Coupling attenuation | ≥ 40 dB |
| f MHZ | Atten-uation dB/10m | NEXT dB min. | NEXT dB nom. | PS- NEXT dB min. | PS- NEXT dB nom. | ELFEXT dB/10m min. | ELFEXT B/10m nom. | PS- ELFEXT dB/10m min. | PS- ELFEXT dB/10m nom. | Return loss dB |
|---|---|---|---|---|---|---|---|---|---|---|
| 1,0 | 0,3 |
65 |
71 | 62 |
68 | 64 |
68 | 61 |
65 | 20 |
| 4,0 | 0,6 |
56 |
62 | 53 |
59 | 52 |
56 | 49 |
53 | 23 |
| 10,0 | 0,9 |
50 |
56 | 47 |
53 | 44 |
48 | 41 |
45 | 25 |
| 16,0 |
1,1 |
47 |
53 | 44 |
50 | 40 |
44 | 37 |
41 | 25 |
| 20,0 |
1,3 |
46 |
51 | 43 |
48 | 38 |
42 | 35 |
39 | 25 |
| 31,2 |
1,6 |
43 |
49 | 40 |
46 | 34 |
38 | 31 |
35 | 24 |
| 62,5 |
2,4 |
38 |
44 | 35 |
41 | 28 |
32 | 25 |
29 | 22 |
| 100,0 |
3,0 |
35 |
41 | 32 |
38 | 24 |
28 | 21 |
25 | 20 |
| 125,0 |
3,3 |
40 | 37 | 26 | 23 | 19 |
||||
| 155,5 |
3,6 |
38 | 35 | 24 | 21 | |||||
| 175,0 |
3,9 |
37 | 34 | 23 | 20 | |||||
| 200,0 |
4,1 |
36 | 32 | 20 | 17 | |||||
| 300,0 |
4,8 |
34 | 31 | 16 | 13 |
Colour = xx: GR (grey), GN (green), BL (blue), GE (yellow), RT (red), OR (orange), SW (black)
