tML® - FO Modules MPO/MTP® 5HP

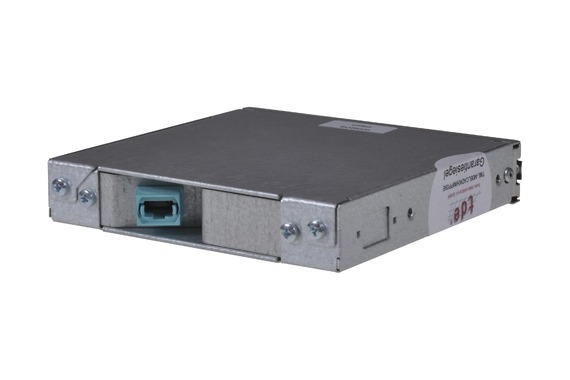

tML® - FO Module 5HP black 2x MPO/MTP® with Pins/6x LC Quad 50/125µ OM3
P/N: TML-T12LCDK/MPP50G3S
tML® - FO Module 5HP black 2x MPO/MTP® with Pins/6x LC Quad 50/125µ OM3
Description
The tML® - FO Module 5HP MPO/MTP® is intended for the installation in the tML® Rack Mount Enclosure 3U (for 17 x Modules).
Technical data
The end faces of the connectors are optimized by means of Lasercleaving and machine polish. The MPO/MTP® plug has a defined fiber hieght of 1 - 3,5µ. The max. adjacent fiber height difference is 0,2µm and for all fibers 0,3µm. All system components (modules, trunk cables and patch cords) are co-ordinated for the reaching of the performance particularly. The module is marked with sequential serial number and article number. The modules are ROHS compliant.
| Box: | Galvanized steel sheet |
| Front Panel: | black |
| Entry: | 2 x MPO/MTP® Male Adapter (black) back |
| Exit: | 6 x LC Quad Adapter (aqua) front |
| Tests: |
Interferometer, Insertion Loss, Return Loss and Visual Final Inspection; all measured values are electronically archived |
| QS-Managementsystem ISO 9001, ISO 14001 and TL 9000 |
| Fiber | Type | Wavelength | IL (dB) typical | IL (dB) max | RL (dB) min |
|---|---|---|---|---|---|
| 50/125µ OM3 | LC | 850nm | ≤ 0,20 | 0,40 | 30 |
| 50/125µ OM3 | MPO/MTP® | 850nm | ≤ 0,30 | 0,45 | 20 |
| 50/125µ OM3 | Module | 850nm | ≤ 0,35 | 0,45 | 20 |
