tML® - tde Modular Link
tML® - Cube for up to four FO or TP Modules
P/N: TML-CUBE
Description
tML® is a patented modular developed cabling system, which consists of three core components: module, trunk cable and rack mount enclosure.
The system components, preterminated with connectors and tested ex works, facilitate very fast installation of both twisted pair and fiber-optic cables. Ready-made trunk cables, providing a high number of pairs or fibers, can simply be plugged together using patch panels. Up to 96x LC duplex and/or 48 x RJ45 of haven can be accommodated in such a way on 1U.
At the heart of the tML – tde Modular Link Systems are MPO/MTP® and Telco connectors, with which 12 optical fibers or 24 copper pairs can be connected simultaneously. Fiber-optic and twisted pair modules can be combined on one rack unit within a panel without difficulty.

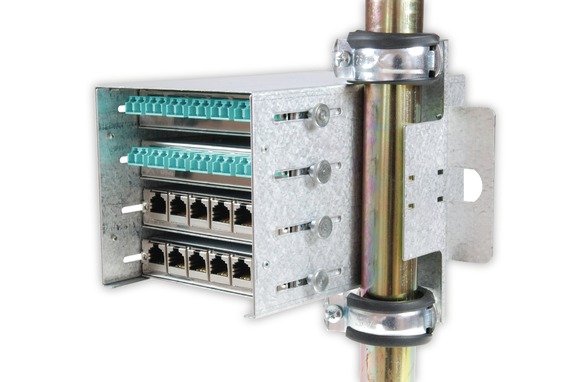

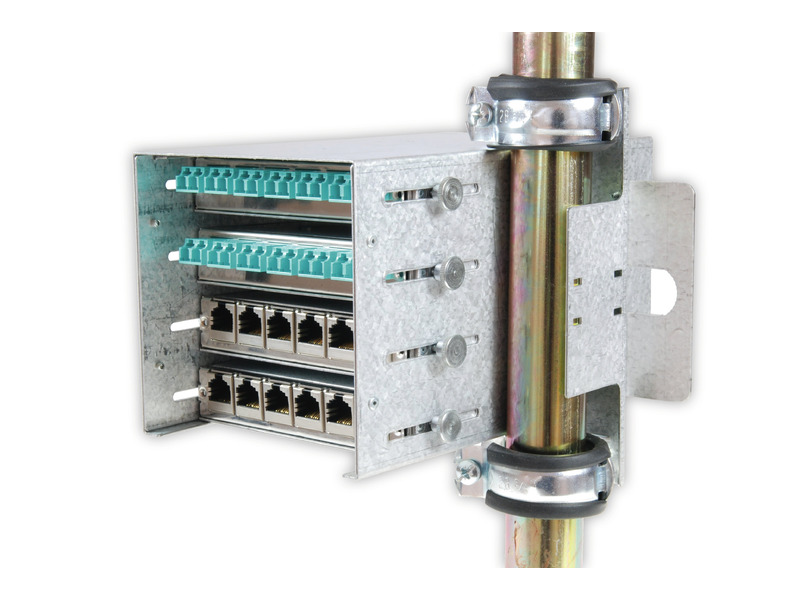

The Cube is a housing that is fixed in the raised floor. It is for the equip of up to 4 x tML® - modules with high packing density. The modules are mounted on a carrier plate extendable.
Technical data
| Housing: | Galvanized steel sheet |
| Equip: | Up to 4 modules, i.e. up to 24 RJ45-Ports or 288 fibres with MPO 72-Fibre technology. The combination of different modules is possible. |
| Strain Relief: | At the module carrier plate with cable ties or Velcro straps. FO fan outs can be fixed outside of the Cube. |
| Attachment: | Attach to the stands of the raised floor with 2x mounting brackets. |
| Dimensions: | 112 x 90 x 185 mm (W x H x D) |
| QS-Managementsystem ISO 9001, ISO 14001 and TL 9000 |
