Description

tML^® is a patented modular developed cabling system, which consists of three core components: module, trunk cable and rack mount enclosure.
The system components, preterminated with connectors and tested ex works, facilitate very fast installation of both twisted pair and fiber-optic cables. Ready-made trunk cables, providing a high number of pairs or fibers, can simply be plugged together using patch panels. Up to 96x LC duplex and/or 48 x RJ45 of haven can be accommodated in such a way on 1U.
At the heart of the tML – tde Modular Link Systems are MPO/MTP^® and Telco connectors, with which 12 optical fibers or 24 copper pairs can be connected simultaneously. Fiber-optic and twisted pair modules can be combined on one rack unit within a panel without difficulty.

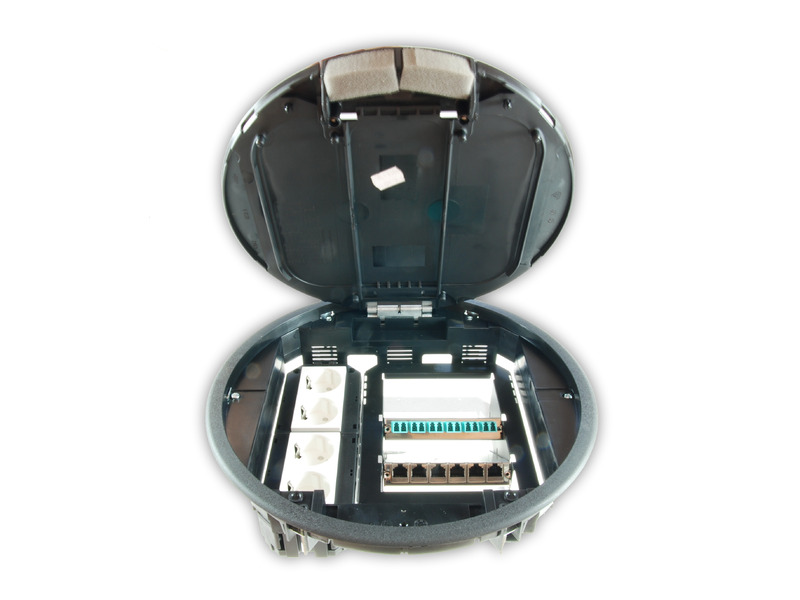

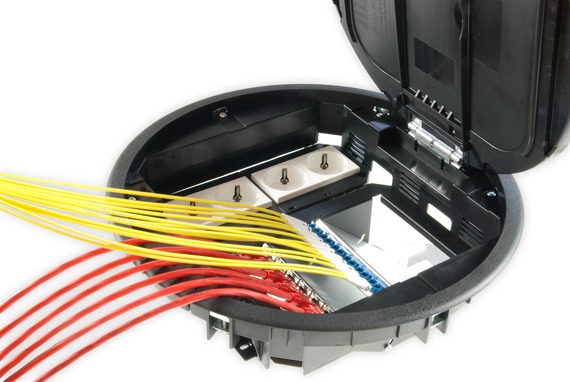

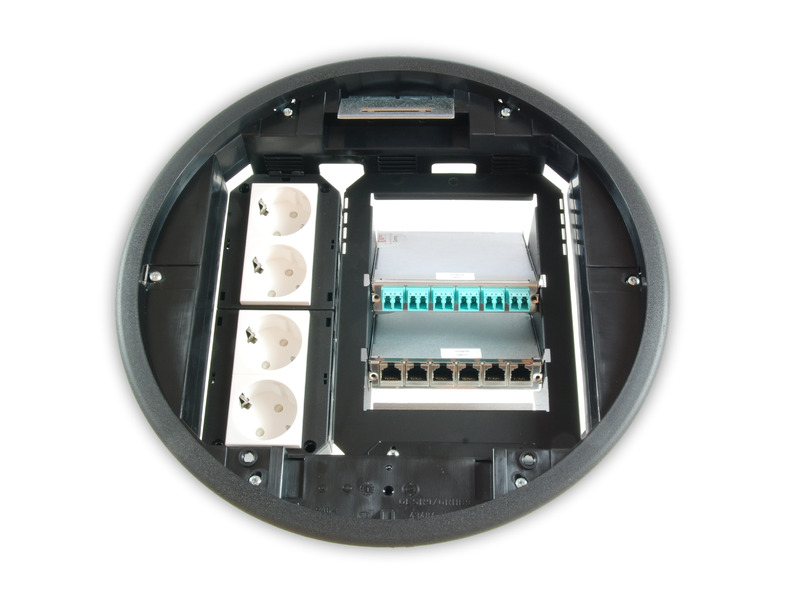

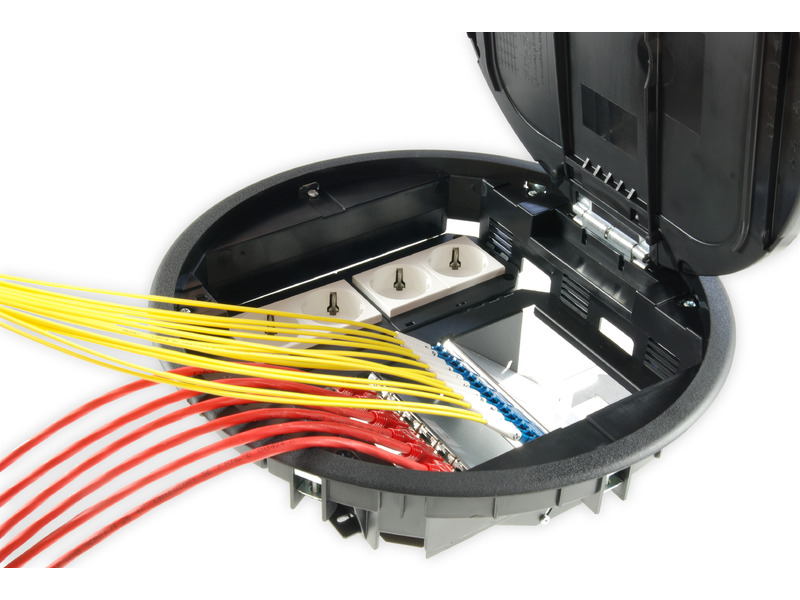

tML^® - Floor box frame is intended for the integration of up to two tML^® - modules into a Ackermann GES9 Floor Box.

Technical data

All existing tML^® - FO or TP modules can be installed. Up to two equal or also different modules can be fastened at the frame with in each case two screws. The modules are then adjustable in a 15° angle.
