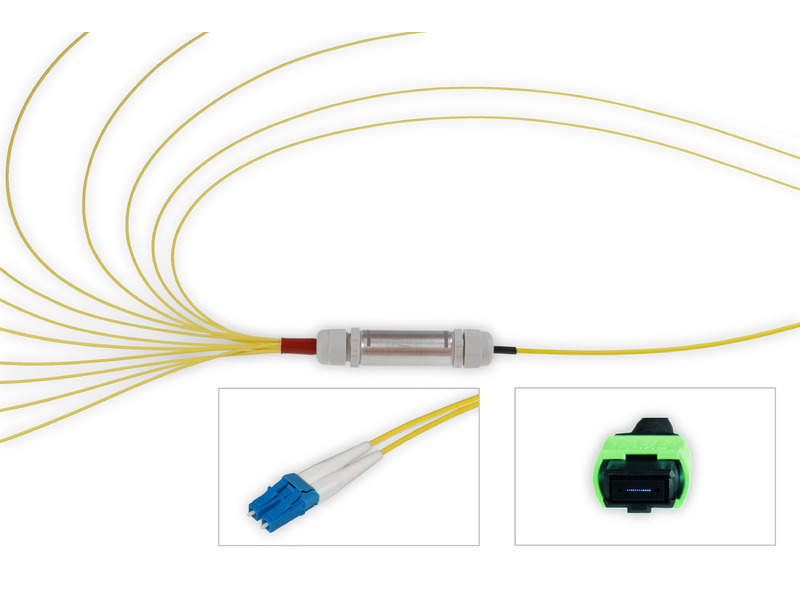

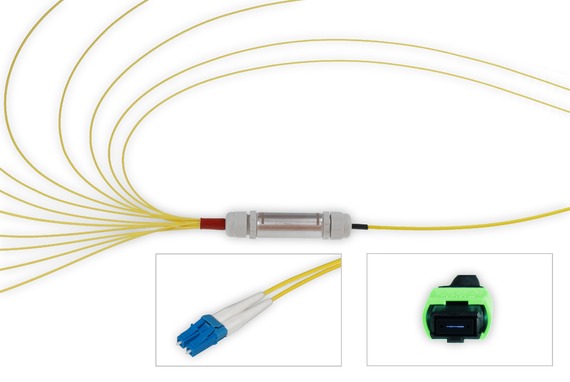

tML® - FO Fan-out Cable MPO with Pins/6x LC Duplex 9/125µ LSOH, Length: xx
P/N: TML-LC/MPP09I12Exx
tML® - FO Fan-out Cable MPO with Pins/6x LC Duplex 9/125µ LSOH, Length: xx
Description
The tML® - FO Fan-out Cable MPO is for the use with tML® - FO Trunk Cables.
Technical data
The end faces of the connectors are optimized by means of Lasercleaving and machine polish. The MPO plug has a defined fiber hieght of 1 - 3,5µ. The max. adjacent fiber height difference is 0,2µm and for all fibers 0,3µm. All system components (fan-out cables or modules, trunk cables and patch cords) are co-ordinated for the reaching of the performance particularly. The fanout cable is marked with sequential serial number and article number.
| Cable: | Round cable, loose tube, LSOH, yellow |
| Fan-out unit: | Metal |
| Entry: | 1 x MTP®/MPO Male Push Pull (green) |
| Exit: | 6 x LC Duplex (blue) |
| Pin-out: | Crossover (TIA/EIA-568-B.1 Methode C) |
| Tests: |
Interferometer, Insertion Loss, Return Loss and Visual Final Inspection; all measured values are electronically archived |
| QS-Managementsystem ISO 9001, ISO 14001 and TL 9000 |
| Fiber | Type | Wavelength | IL (dB) typical | IL (dB) max | RL (dB) min |
|---|---|---|---|---|---|
| 9/125µ |
LC | 1550nm | ≤ 0,10 | 0,30 | 55 |
| 9/125µ |
MPO APC |
1550nm | ≤ 0,10 | 0,45 | 65 |
| 9/125µ |
Fan-out | 1550nm | ≤ 0,30 | 0,50 | 65 |
