tML® - TP Trunk Cables Telco F/F
tML® - TP Trunk Cable Telco F/F 180° shielded 1000BaseT LSHF-F length: xx meters
P/N: TML-TELCO-FF-Cxx
tML® - TP Trunk Cable Telco F/F 180° shielded 1000BaseT LSHF-F length: xx meters
Description
The tML® – TP trunk cable is intended for the connection of two tML®- TP Modules.
Technical data
tML® - TP Trunk Cable is preterminated on both ends with a Telco 50pos. female connector. The cable is very slim and flexible. Each cable is marked with sequential serial number and article number.
| Cable: | S/FTP Round Cable 24x2xAWG 26/1, Pet-Al foil around each pair, 3 layers of screened pairs (2+8+14), LSHF-FR |
| Outer Diameter: | 13,2mm |
| Weight: | 205 kg/km |
| bending radius without load | 55 mm |
| bending radius with load: | 110 mm |

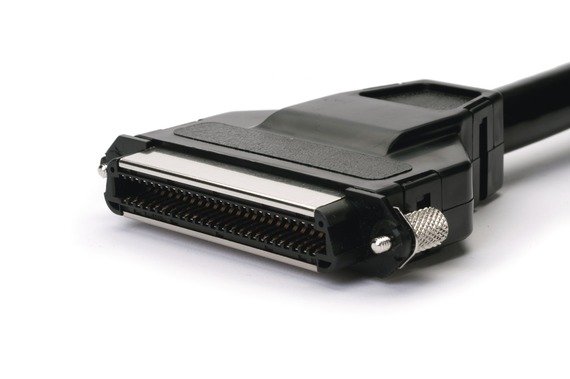

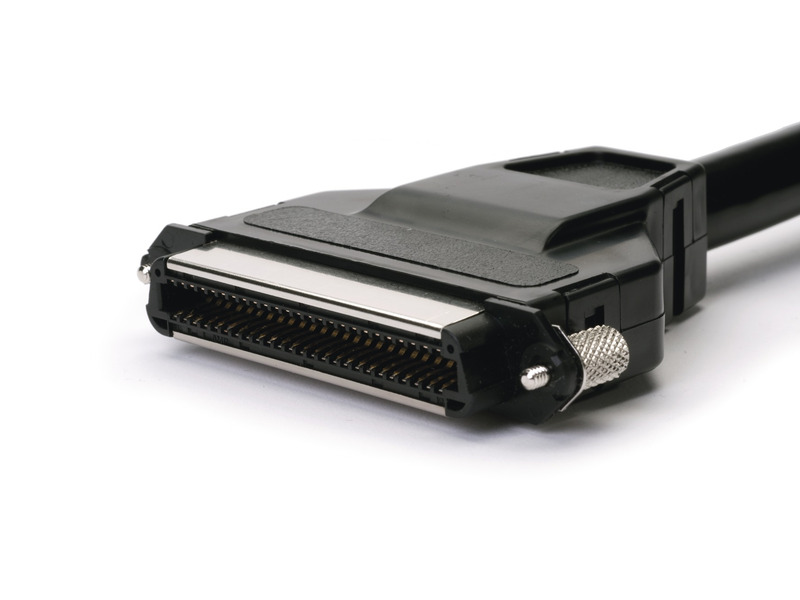

| Connectors: | 2 x Telco 50pos. Female 180° shielded with screws |
| Tests: | Link Performance Tests, Elektronischer Test on short-circuit and Visual Final Inspection; all measured values are electronically archived |
| QS-Managementsystem nach ISO 9001, ISO 14001 und TL 9000 |
xx - stands for the cable length in meters (max. length is 60m)
