tde - Secure Patchcords with locking feature

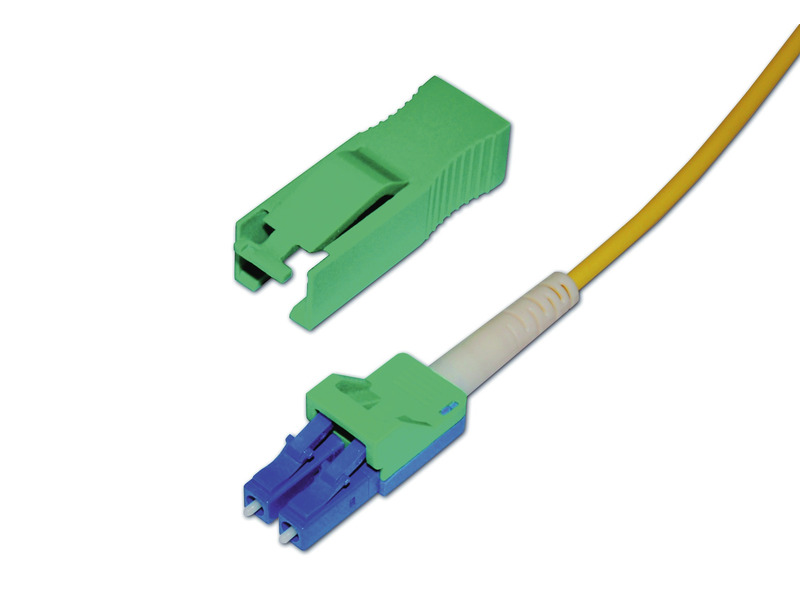

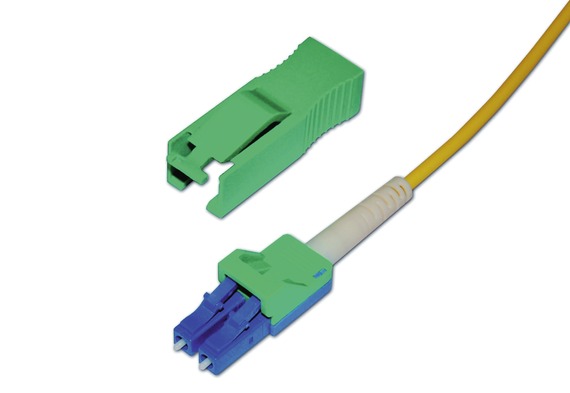

tde - Secure Patch cord LC/LC 50/125µ Duplex Round Cable LSOH OM3 length xxx

P/N: L-SLC/SLC50D3Rxxx-yy

Description

The feature of the SLC plug is simple: If one puts the plug into a standard LC adapter, this engages there firmly and is surely locked. The disconnecting is only possible with the use of a special extraction tool. Then no danger exists that unauthorized plugs are unlocked. Eight different key configurations are available as standard options.

Technical data

Cable: Round cord 3,2mm diameter, distribution cable construction, LSOH
Connector: Secure LC Duplex
Tests:

Insertion Loss, Interferometer Test and Visual Inspection
Cable Colour: Aqua
Connector Colour: yy = WS (white), GR (grey), GN (green), BL (blue), GE (yellow), RT (red), OR (orange), SW (black)
Length: xxx in meters



Optical Performance:
Fiber Type Wavelength IL (dB) typ. IL (dB) max. RL (dB) typ. RL (dB) min.
50/125µ OM3 LC 1300nm ≤ 0,25 0,45 ≥ 35 35
P/N Description
L-SLC-BLIND-yy     tde - Secure LC Blind Connector for Port Locking (yy-Colour Code)
L-SLC/SLC50D3Rxxx-yy     tde - Secure Patch cord LC/LC 50/125µ Duplex Round Cable LSOH OM3 length xxx
L-SLC-TOOL-yy     tde - Secure LC Extraction Tool (yy-Colour Code)
