Description

The tde - HEB (Hermaphroditic Expanded Beam) technology allows the usage of optical communication in the harshest environments and the tde connector range; provide the user with the security that the communication link will work: first time, every time. The hermaphroditic design is particularly useful and provides unique benefits in rapid deployment or cable extensions, as no adaptors are needed. Any two connectors can just be interconnected.

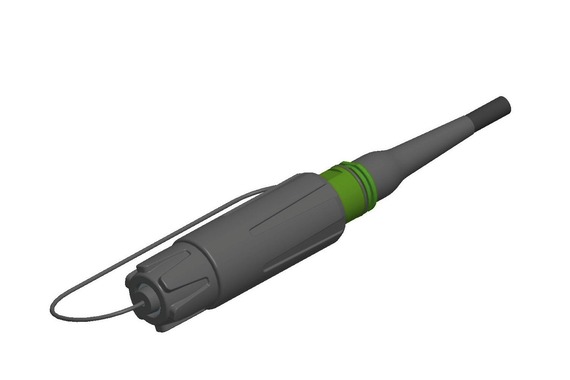

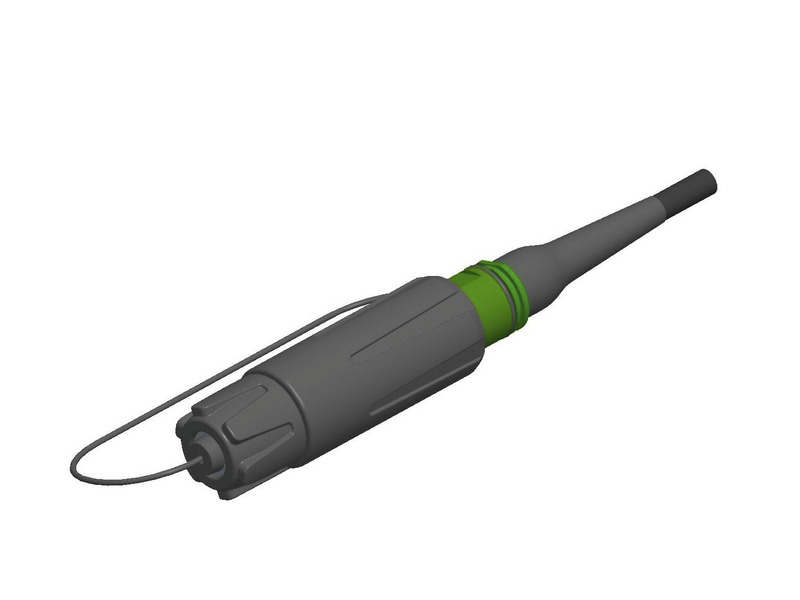

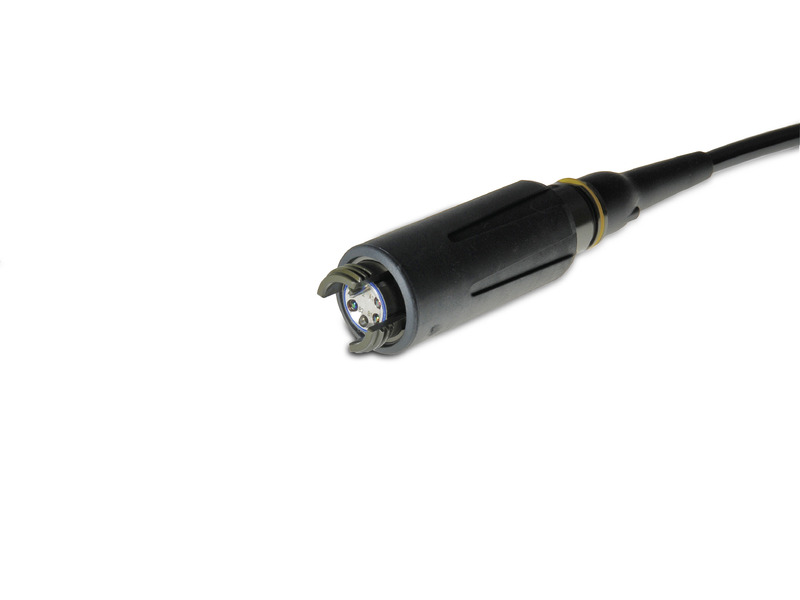

The HEBM style Expanded Beam connector is designed according to Mil-DTL-83526 which is the de facto standard in today’s military market. The broadcast and industrial markets are also using this connector style in a variety of application. The HEBM range features 1-4 optical channels, Singlemode and/or Multimode

Technical data

The tde connectors are available in Singlemode and Multimode with best performance in class. By design the connectors are future proof, as the optical path is optimized to support the range from 850nm to 1310nm in Multimode and 1310nm to 1550nm for Singlemode application.
These Connectors are agnostic to the signal passing through, so WDM is also possible, whenever higher bandwidth needs to be transmitted. The connectors are field repairable. The unique RFID tagging system provides a tool for inventory control and carries the performance data as an electronic test certificate. Having as standard; aluminium anodized housings, the tde connectors are also available in stainless steel, which meets the requirements for naval, mining and other extreme applications.

• MIL-DTL-83526 compatible
• Hermaphroditic
• Multimode and Singlemode
• 1-4 Channels
• Field Repairable
• Anodized Alu / Stainless Steel
• RFID Marked
• Military, Oil & Gas. Broadcast & Industrial

xx = Fiber: MM (Multimode), SM (Singlemode)

yy = Channel Counts: 01, 02, 03, 04
