tde - FO Cleaning Tools for Connectors and Adapters

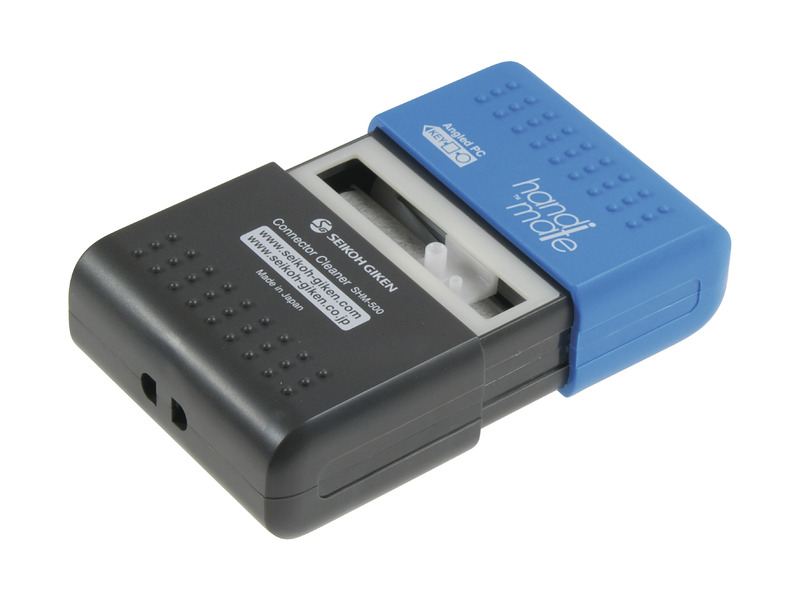

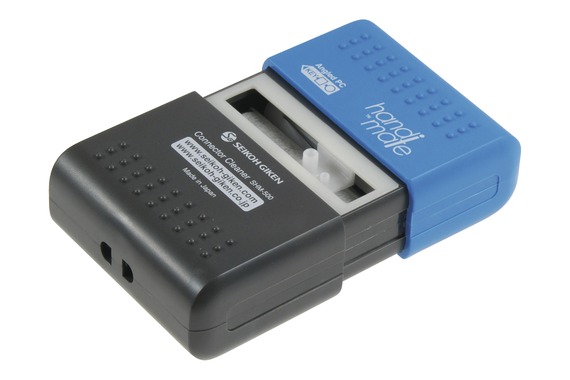

FO Cleaning tool for FO Simplex Connectors

P/N: L-CLEAN-SHM-501

Description

The performance of the individual fiber optic connector on the network is increasingly playing a very important role, since the transfer rates to rise steadily. The availble attenuation budgets can be quickly exhaust. Therefore, it is always very important that not only very high-quality connectors are used with optimized end surfaces, but dirt is avoided on the connector surfaces. Very often, however, if improperly applied connector cleaning more dirt or even damage the connector. Only the tools listed below guarantee a reliable connector cleaning.

• Handy and high performance cleaner that fits in your hand and
  achieves cleaning more than 500 times
• Just one sliding motion enables to remove contamination such as
  dust or oil on optical connector end-face
• Connector to be set on guide holder enables stable and even
  cleaning result always

Technical data

Key Features
• Dry cleaner with innovative technology.
• Clean contaminant such as dust or oil on optical connector end face.
• Applicable for SC, FC, ST, LC, MU and for PC & APC types
• connectors without any optional part.
• +500 cleanings per 1 unit.
• Simple handling.
• Cigarette-package size & light weight.
• Anti-static materials.

Application: Clean simplex connectors 1,25 and 2,5mm
Dimension: 110x68x28mm (Cap opened)
Weight: 75g
Operation: Slide type
Life: More than 500 times
Applicable connector: SC, FC, ST, LC, MU
P/N Description
L-CLEAN-SHM-501     FO Cleaning tool for FO Simplex Connectors
