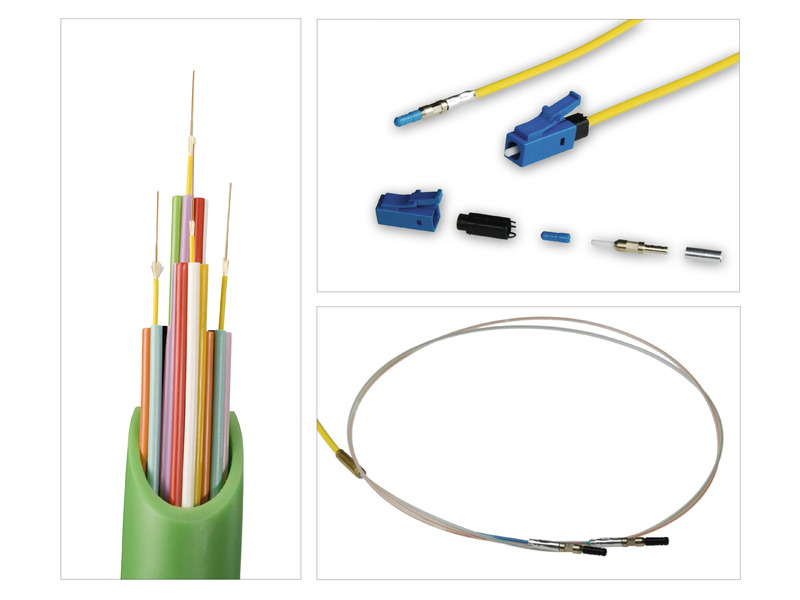

FO Preterminated Cables for Blowing
FO Cable Pigtail tMO (LC)/- Simplex 9/125 BBXS Fiber, Length: xxxx in m
P/N: L-TMO/-09I01EXSxxxx
FO Cable Pigtail tMO (LC)/- Simplex 9/125 BBXS Fiber, Length: xxxx in m
Description

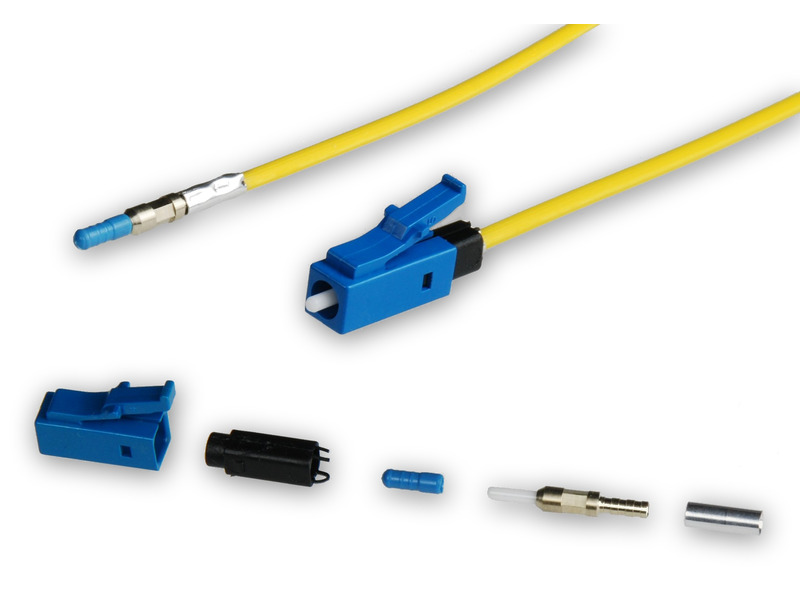

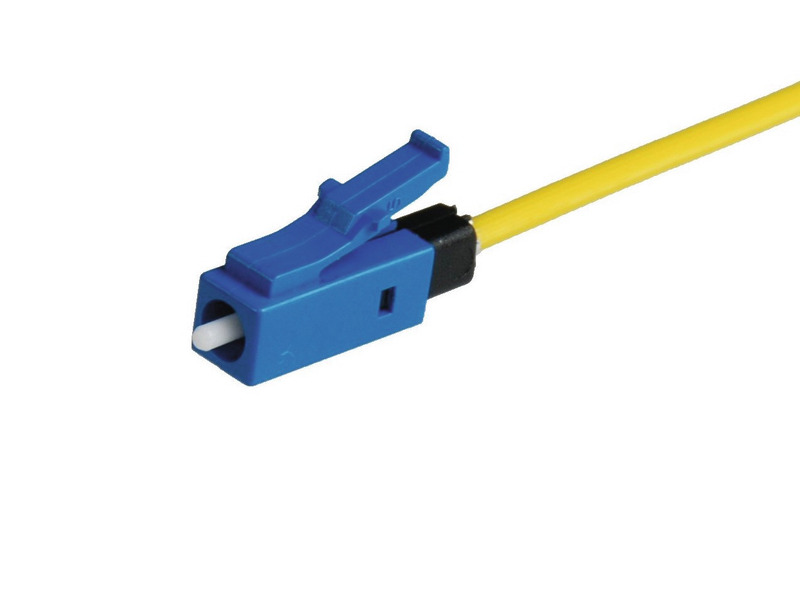

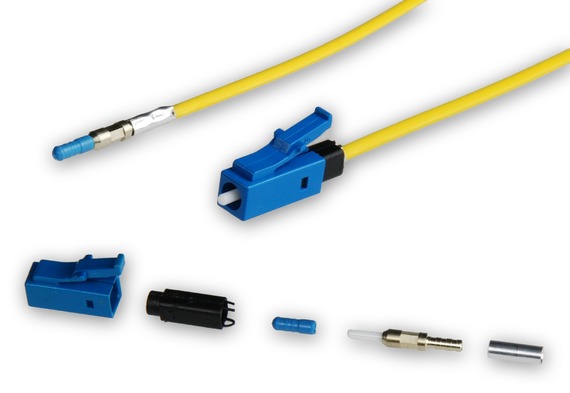

The FO Cable Pigtail Simlex is preterminated on one end with a tMO connector.
Applications:
Telecommunication, FTTX, LAN, Data Centers, Multimedia, Industry
Technical data
| Type: | tMO (LC) Simplex |
| Ferrule: | Ceramic, 125,5µm, not fitted with springs, LC - Compatible |
| Plug color: | blue |
| Mating Durability | 500 |
| Operating Temperature: | -40° C to +75° C |
| Producer: | tde |
| Fiber: |
9/125µ G.657.A2 & B2 |
|
| No. of Fibers: | 1 | red,white |
| Outer Sheath: |
1,8 ± 0,2 mm |
|
| Sheath Color: | yellow (single mode) | |
| Filler Elements Colors: | uncolored | |
| Cable Weight: |
3 kg/km |
|
| Pulling Force: |
150 N |
|
| Side Load: | IEC 60794-1-2-E3 | 1250 N / 100 mm |
| Impact: | IEC 60794-1-2-E4 | 5 Nm |
| Repeated Bending: | IEC 60794-1-2-E6 | R=25x D, 100 cycles |
| Cable Bend: | IEC 60794-1-2-E11 | R=20x D |
| Temperature Range: | Transportation & Storage | - 30 to + 60°C |
| Installation | - 10 to + 50°C |
|
| Operation | - 20 to + 60°C |
| Fiber | Type | Wavelength | IL (dB) typical | IL (dB) maximum | RL (dB) typical | RL (dB) minimum |
|---|---|---|---|---|---|---|
| 09/125µ |
tMO |
1550nm | ≤ 0,25 | 0,45 |
≥ 55 |
55 |
Tests:
Interferometer, Insertion Loss, Return Loss and Visual Final Inspection
QS-Managementsystem ISO 9001, ISO 14001 and TL 9000
