FO Patch Cords Simplex

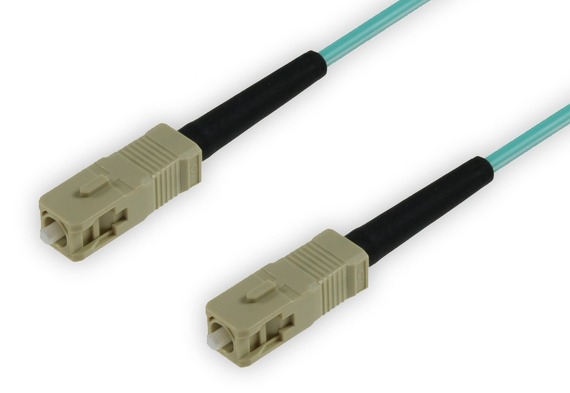

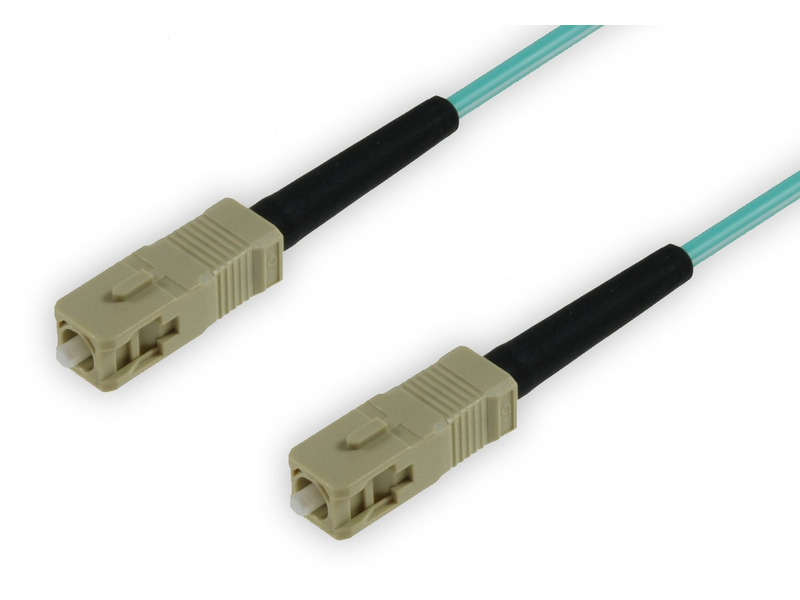

FO-Patch cord SC/SC tde 50/125µ Simplex LSOH OM3 Length: xxxxx

P/N: L-SC/SC50S3-xxxxx

Technical data

Connector 1:
Type: SC
Ferrule: Ceramic
Connector colour:
 Beige
Boot colour: Black
Manufacturer: tde

Connector 2:
Type: SC
Ferrule: Ceramic
Connector colour: Beige
Boot colour:

Black
Manufacturer: tde


Cable:

Type:

 IVH01G50/125µ-OM3
Strength Members: Aramid yarns
Secondary Coating: 900μ, easy strippable
Outer Jacket: LSOH
Jacket colour: Aqua
Cable diameter single element: 2,4 mm
Optical Characteristics: Fibertype

 MM-OM3, 50/125µ,
Corning InfiniCor SX+
  Core Compact core construction
  Bandwidth (MHz*Km) 1500/500 (850nm/1300nm)
  Attenuation
 850nm (max): 2,3 dB/km
1300nm (max): 0,6 dB/km
  Mode Field Diameter 50 ± 2,5μm
  Cladding Diameter 125,0μm ± 2,0μm
Mechanical Characteristics:

Temperature range

 Operation -5°C to +60°C
  Bending radius 10 x Outer diameter
Tests:

Interferometer, Insertion Loss, Return Loss and Visual Final Inspection; all measured values are electronically archived

QS-Managementsystem ISO 9001, ISO 14001 and TL 9000


Manufacturer: t d e




Optical Performance
Fiber Type Wavelength Insertion loss (dB) max. Return loss (dB) min.
50/125µ OM3 SC
 1300 nm ≤0,45 ≥20



Length: xxxxx in cm

P/N Description
L-SC9/SC9-09Sxxxxx     FO-Patch cord SC APC 9°/SC APC 9° tde 9/125µ Simplex LSOH Length: xxxxx
L-SCA/SCA09Sxxxxx     FO-Patch cord SC APC/SC APC tde 9/125µ Simplex LSOH Length: xxxxx
L-SC/SC09Sxxxxx     FO-Patch cord SC/SC tde 9/125µ Simplex LSOH Length: xxxxx
L-SC/SC50S3-xxxxx     FO-Patch cord SC/SC tde 50/125µ Simplex LSOH OM3 Length: xxxxx
L-SC/SC50Sxxxxx     FO-Patch cord SC/SC tde 50/125µ Simplex LSOH Length: xxxxx
L-SC/SC62Sxxxxx     FO-Patch cord SC/SC tde 62,5/125µ Simplex LSOH Length: xxxxx
L-SCU/SCU09Sxxxxx     FO-Patch cord SC UPC/SC UPC tde 9/125µ Simplex LSOH Length: xxxxx
