FO Patch Cords Simplex

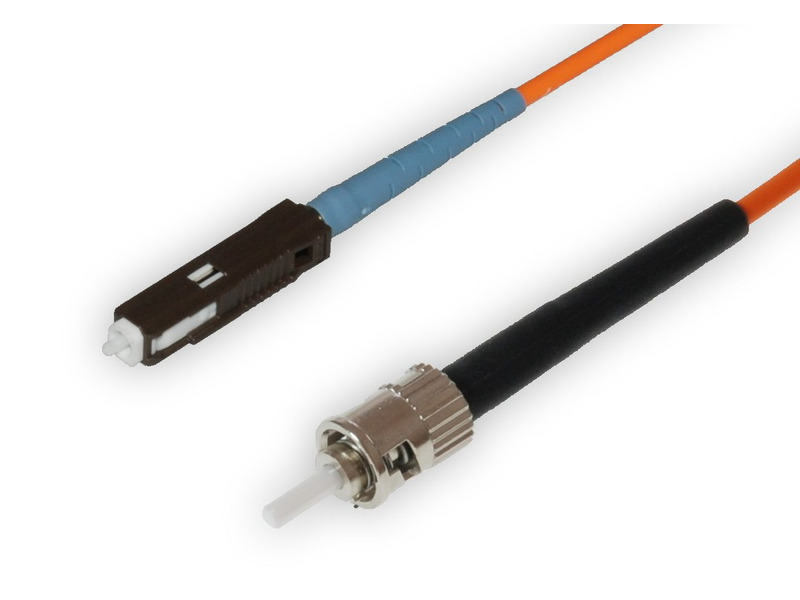

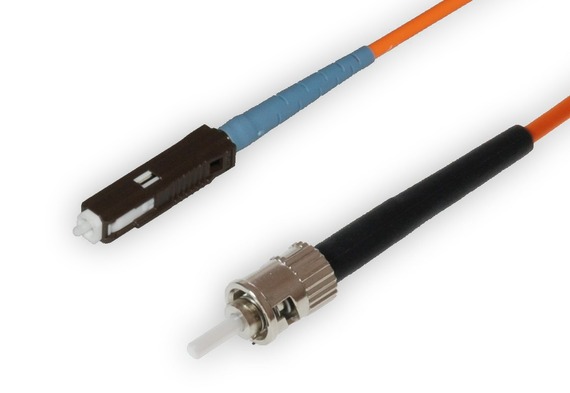

FO-Patch cord MU/ST tde 62,5/125µ Simplex MiniZip LSOH Length: xxxxx

P/N: L-MU/ST62S-Mxxxxx

Technical data

Connector 1:
Type: MU
Ferrule: Ceramic
Connector Colour:
 Black
Boot Colour:
 Blue
Manufacturer: tde

Connector 2:
Type: ST
Ferrule: Ceramic
Connector Colour: Metal
Boot Colour: Black
Manufacturer: tde

Cable:
Type: IVH01G62/125μ
Strength Members:

Aramid yarns


Secondary Coating: 600μ, easy strippable
Outer Jacket: LSOH
Jacket Colour: Orange
Cable diameter single element: 2,0 mm
Optical characteristics: Fibertype
 MM-OM1, 62,5/125µ,
Corning InfiniCor 300-Fiber
  Core Compact core construction
  Attenuation 850nm (max): 2,9 dB/km
1300nm (max): 0,6 dB/km
  Mode Field Diameter 62,5 ± 2,5μm
  Cladding Diameter 125,0μm ± 2,0μm
Mechanical characteristics:

Temperature range

 Operation -5°C to +60°C
  Bending radius 10 x Outer diameter
Tests:

Interferometer, Insertion Loss, Return Loss and Visual Final Inspection; all measured values are electronically archived

QS-Managementsystem ISO 9001, ISO 14001 and TL 9000


Manufacture: t d e


Optical  Performance:
Fiber Type Wavelength Insertion loss (dB) maximal Return loss (dB) minimal
62,5/125µ

MU

 1300nm ≤0,45
 ≥20
62,5/125µ ST 1300nm ≤0,45
≥20


Length: xxxxx in cm

P/N Description
L-MU/ST09S-Mxxxxx     FO-Patch cord MU/ST tde 9/125µ Simplex MiniZip LSOH Length: xxxxx
L-MU/ST50S3Mxxxxx     FO-Patch cord MU/ST tde 50/125µ Simplex MiniZip LSOH OM3 Length: xxxxx
L-MU/ST50S-Mxxxxx     FO-Patch cord MU/ST tde 50/125µ Simplex MiniZip LSOH Length: xxxxx
L-MU/ST62S-Mxxxxx     FO-Patch cord MU/ST tde 62,5/125µ Simplex MiniZip LSOH Length: xxxxx
