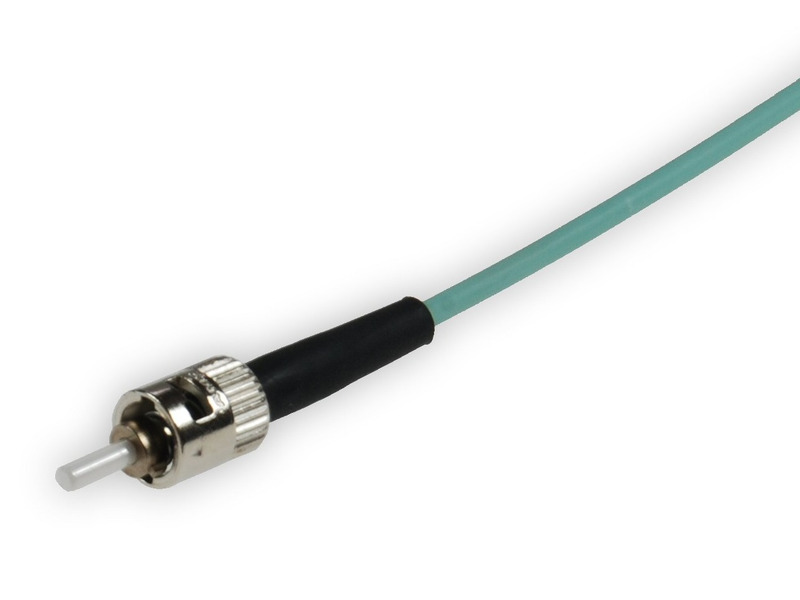

tde - FO-Cable Pigtail ST 50/125µ Simplex OM3 LSOH Length: xxxxx

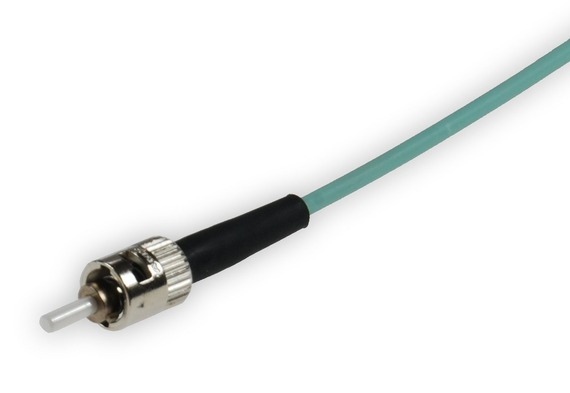

P/N: L-ST/-50S3-xxxxx
tde - FO-Cable Pigtail ST 50/125µ Simplex OM3 LSOH Length: xxxxx
Technical data
| Type: | ST |
| Ferrule: | Ceramic |
| Connector colour: | Metal |
| Boot colour: |
Black |
| Manufacturer: | tde |
|
Type: |
IVH01G50/125µ-OM3 | |
| Strength Members: | Aramid yarns | |
| Secondary Coating: | 900μ, easy strippable | |
| Outer Jacket: | LSOH | |
| Jacket colour: | Aqua | |
| Cable diameter single element: | 2,4 mm | |
| Optical Characteristics: | Fibertype | MM-OM3, 50/125µ, Corning InfiniCor SX+ |
| Core | Compact core construction | |
| Bandwidth (MHz*Km) | 1500/500 (850nm/1300nm) | |
| Attenuation | 850nm (max): 2,3 dB/km 1300nm (max): 0,6 dB/km |
|
| Mode Field Diameter | 50 ± 2,5μm | |
| Cladding Diameter | 125,0μm ± 2,0μm | |
| Mechanical Characteristics: |
Temperature range |
Operation -5°C to +60°C |
| Bending radius | 10 x Outer diameter | |
| Tests: |
Interferometer, Insertion Loss, Return Loss and Visual Final Inspection; all measured values are electronically archived QS-Managementsystem ISO 9001, ISO 14001 and TL 9000 |
|
| Manufacturer: | t d e | |
| Fiber | Type | Wavelength | Insertion loss (dB) max. | Return loss (dB) min. |
|---|---|---|---|---|
| 50/125µ OM3 | ST | 1300 nm | ≤0,45 | ≥20 |
Length: xxxxx in cm
