FO Pigtails

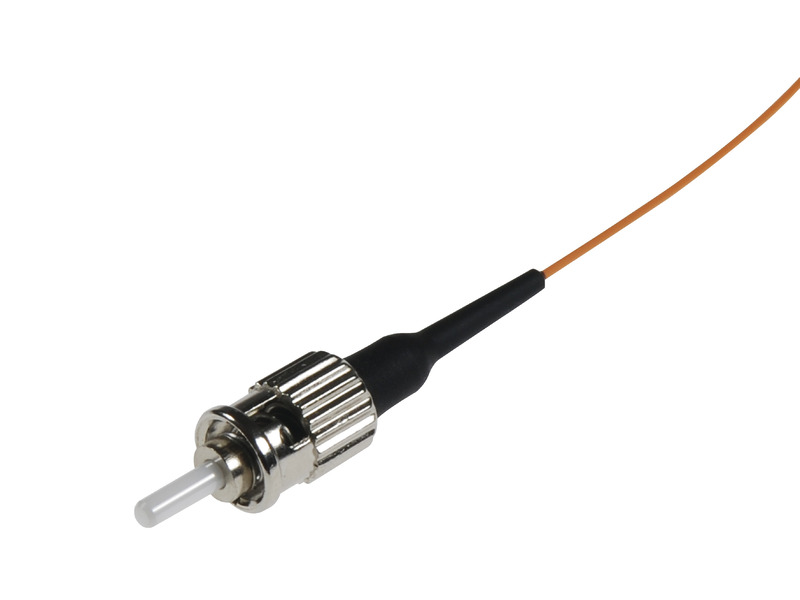

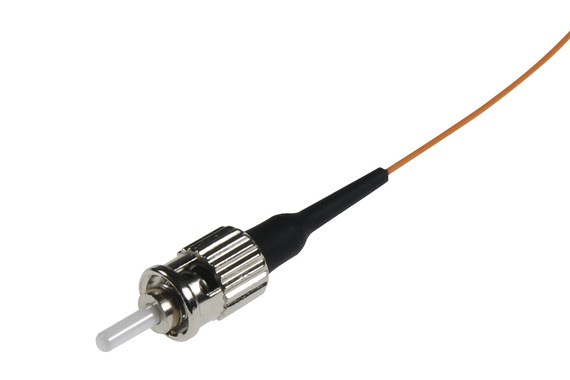

FO Fiberpigtail ST 50/125µ OM2 Length: xxxxx

P/N: L-ST/-50Fxxxxx

Technical data

Cable: I-V 1G 50/125, tight buffer
Fiber type: MM-OM2, 50/125µ, Corning InfiniCor SXi
Manufacturer: Corning
Core Diameter: 50 ± 2,5µm
Cladding Diameter: 125 ± 2,0µm
Buffer: Tight
Outer Coating: 900µm
Bandwidth (MHz*Km): 700/500 (850nm/1300nm)
Attenuation: 850nm (max.): 2,3 dB/km
  1300nm (max.): 0,6 dB/km
Connector: ST
Test:

Interferometer, Insertion Loss, Return Loss and Visual Final Inspection; all measured values are electronically archived

QS-Managementsystem ISO 9001, ISO 14001 and TL 9000
Length: xxxxx cm

Optical Performance
Fiber Type Wavelength Insertion loss (dB) max. Return loss (dB) min.
50/125µ ST 1300nm ≤0,45 ≥20
P/N Description
L-ST/-09Fxxxxx     FO Fiberpigtail ST 9/125µ OS2 Length: xxxxx
L-ST/-50F3-xxxxx     FO Fiberpigtail ST 50/125µ OM3 Length: xxxxx
L-ST/-50Fxxxxx     FO Fiberpigtail ST 50/125µ OM2 Length: xxxxx
L-ST/-62Fxxxxx     FO Fiberpigtail ST 62,5/125µ OM1 Length: xxxxx
