FO Pigtails

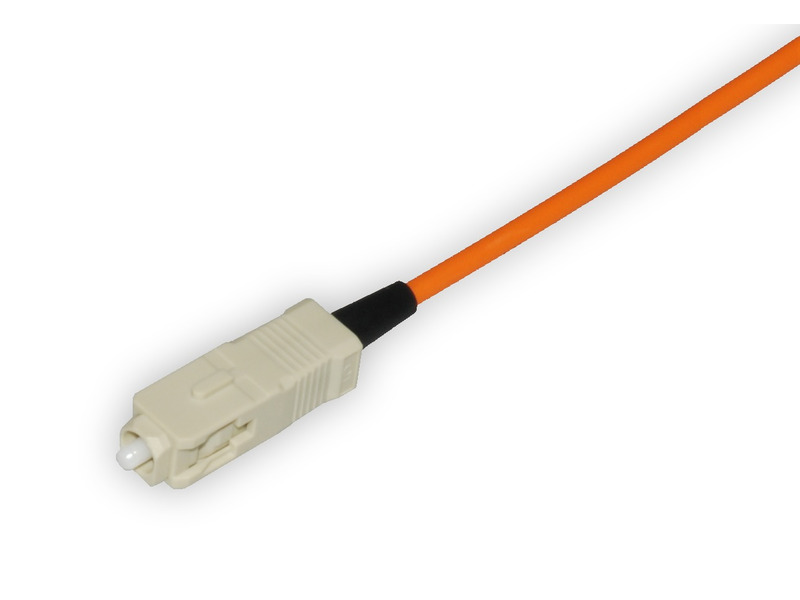

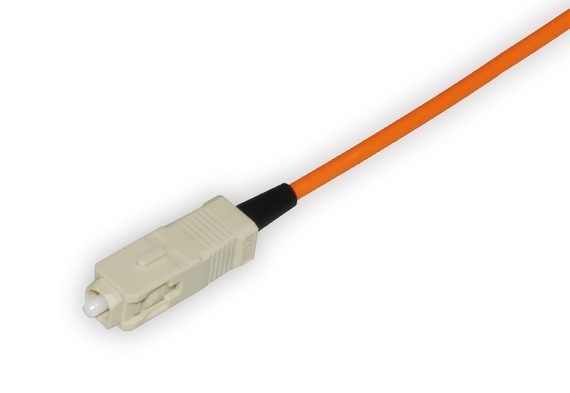

FO-Cable Pigtail SC 50/125µ Simplex LSOH Length: xxxxx

P/N: L-SC/-50Sxxxxx

Technical data

Connector:
Type: SC
Ferrule: Ceramic
Connector colour: Beige
Boot colour:

Black
Manufacturer: tde


Cable:

Type:

 IVH01G50/125µ
Strength Members: Aramid yarns
Secondary Coating: 900μ, easy strippable
Outer Jacket: LSOH
Jacket Colour:

Orange


Cable diameter single element: 2,4 mm
Optical Characteristics: Fibertype
 MM-OM2, 50/125µ,
Corning InfiniCor SXi
  Core Compact core construction
  Attenuation 850nm (max): 2,3 dB/km
1300nm (max): 0,6 dB/km
  Mode Field Diameter 50 ± 2,5μm
  Cladding Diameter 125,0μm ± 2,0μm
Mechanical Characteristics:

Temperature range

 Operation -5°C to +60°C
  Bending radius 10 x Outer diameter
Tests:

Interferometer, Insertion Loss, Return Loss and Visual Final Inspection; all measured values are electronically archived

QS-Managementsystem ISO 9001, ISO 14001 and TL 9000


Manufacturer: t d e




Optical performance
Fiber Type Wavelength Insertion loss (dB) max. Return loss (dB) min.
50/125µ SC
 1300 nm ≤0,45 ≥20



Length: xxxxx in cm

P/N Description
L-SC/-09Sxxxxx     FO-Cable Pigtail SC 9/125µ Simplex LSOH Length: xxxxx
L-SC/-50S3-xxxxx     FO-Cable Pigtail SC 50/125µ Simplex OM3 LSOH Length: xxxxx
L-SC/-50S4-xxxxx     FO-Cable Pigtail SC 50/125µ Simplex OM4 LSOH Length: xxxxx
L-SC/-50Sxxxxx     FO-Cable Pigtail SC 50/125µ Simplex LSOH Length: xxxxx
L-SC/-62Sxxxxx     FO-Cable Pigtail SC 62,5/125µ Simplex LSOH Length: xxxxx
L-SC9/-09Sxxxxx     FO-Cable Pigtail SC APC 9° 9/125µ Simplex LSOH Length: xxxxx
L-SCA/-09Sxxxxx     FO-Cable Pigtail SC APC 9/125µ Simplex LSOH Length: xxxxx
L-SCU/-09Sxxxxx     FO-Cable Pigtail SC UPC 9/125µ Simplex LSOH Length: xxxxx
