FO Pigtails

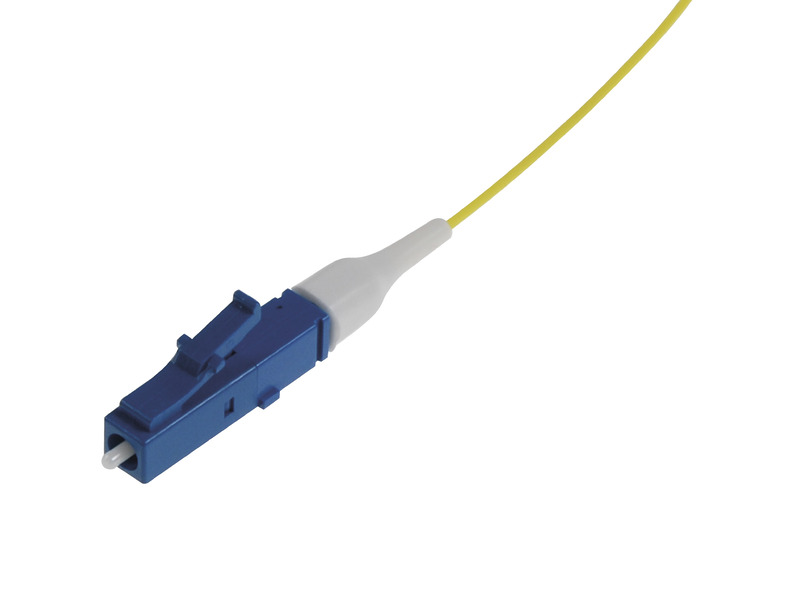

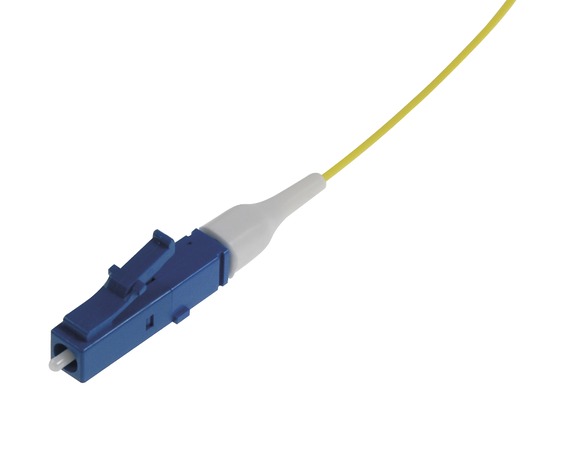

FO Fiberpigtail LC 9/125µ OS2 Length: xxxxx

P/N: L-LC/-09Fxxxxx

Technical data

Cable: I-V 1E 09/125, tight buffer
Fiber type: SM-G.652.D, 09/125μ, Corning SMF-28e+, OS2
Manufacturer: Corning
Core Diameter: 9,2 ± 0,4µm
Cladding Diameter: 125 ± 0,7µm
Buffer: Tight
Outer Coating: 900µm
Attenuation: 1310nm (max.): 0,35 dB/km
  1383nm (max.): 0,35 dB/km
  1550nm (max.): 0,20 dB/km
Cutoff-wavelength: ≤ 1260nm
Connector: LC
Test:

Interferometer, Insertion Loss, Return Loss and Visual Final Inspection; all measured values are electronically archived

QS-Managementsystem ISO 9001, ISO 14001 and TL 9000
Length: xxxxx cm



Optical Performance
Fiber Type Wavelength Insertion loss (dB) max. Return loss (dB) min.
9/125µ LC
 1550nm ≤0,45 ≥45
P/N Description
L-LC/-09Fxxxxx     FO Fiberpigtail LC 9/125µ OS2 Length: xxxxx
L-LC/-50F3-xxxxx     FO Fiberpigtail LC 50/125µ OM3 Length: xxxxx
L-LC/-50Fxxxxx     FO Fiberpigtail LC 50/125µ OM2 Length: xxxxx
L-LC/-62Fxxxxx     FO Fiberpigtail LC 62,5/125µ OM1 Length: xxxxx
