FO Pigtails

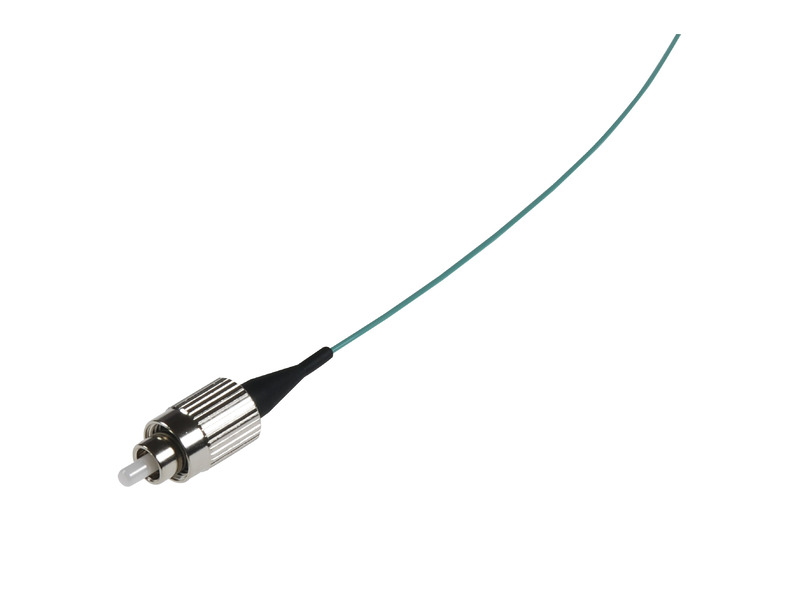

FO Fiberpigtail FC PC 50/125µ OM3 Length: xxxxx

P/N: L-FC/-50F3-xxxxx

Technical data

Cable: I-V 1G 50/125, tight buffer
Fiber type: MM-OM3, 50/125µ, Corning InfiniCor SX+
Manufacturer: Corning
Core Diameter: 50 ± 2,5µm
Cladding Diameter: 125 ± 2,0µm
Buffer: Tight
Outer Coating: 900µm
Bandwidth (MHz*Km): 1500/500 (850nm/1300nm)
Attenuation: 850nm (max.): 2,3 dB/km
  1300nm (max.): 0,6 dB/km
Connector: FC PC
Test:

Interferometer, Insertion Loss, Return Loss and Visual Final Inspection; all measured values are electronically archived

QS-Managementsystem ISO 9001, ISO 14001 and TL 9000
Length: xxxxx cm



Optical Performance
Fiber Type Wavelength Insertion loss (dB) max. Return loss (dB) min.
50/125µ OM3
 FC PC
 1300nm ≤0,45 ≥20
P/N Description
L-FC/-09Fxxxxx     FO Fiberpigtail FC PC 9/125µ OS2 Length: xxxxx
L-FC/-50F3-xxxxx     FO Fiberpigtail FC PC 50/125µ OM3 Length: xxxxx
L-FC/-50Fxxxxx     FO Fiberpigtail FC PC 50/125µ OM2 Length: xxxxx
L-FC/-62Fxxxxx     FO Fiberpigtail FC PC 62,5/125µ OM1 Length: xxxxx
L-FCA/-09Fxxxxx     FO Fiberpigtail FC APC 9/125µ OS2 Length: xxxxx
L-FCU/-09Fxxxxx     FO Fiberpigtail FC UPC 9/125µ OS2 Length: xxxxx
