FO Attenuators

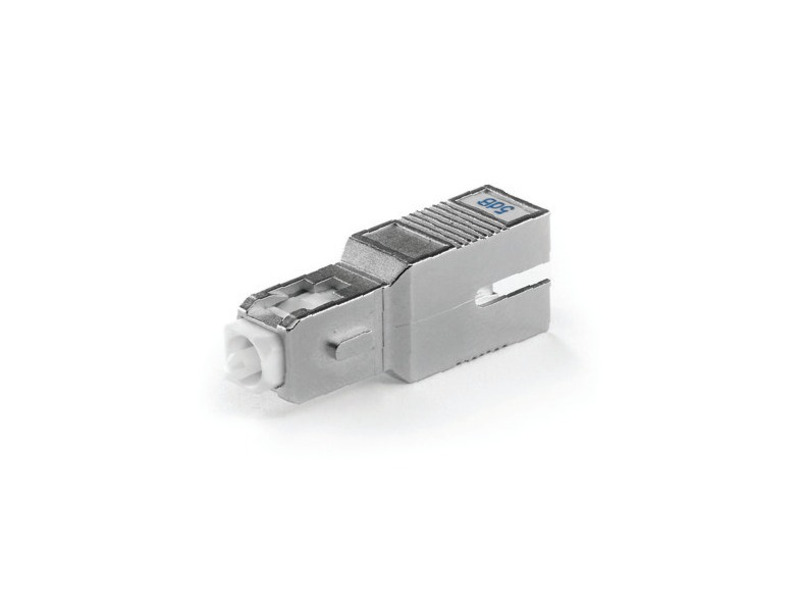

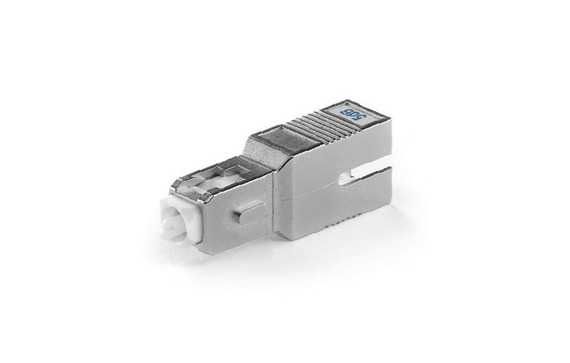

FO attenuator SC/UPC plug/jack, xxdB, 1310/1550nm

P/N: L-ATT-SC/UPC-MF-xx

Technical data

Applications
• Erbium Doped Fiber Amplifiers (EDFA)
• Dense Wave Division Multiplexers (DWDM)
• Overpowered fiber optic systems

Features
• Metal ion doped fiber
• High-power light source durability
• Wavelength independence
• Attenuation levels ranging from 1dB to 30dB
• 1310nm, 1550nm, 1250-1625nm and 1350/1550nm dual wave lengths

Specification
Return Loss: ≥ 55dB (UPC)
Attenuation Tolerance: 1 to 10dB: ±0,5, 11 to 30dB: ±5%
Operational Wavelengths: 1310, 1490, and 1550nm
Operating Temperature: -40 to +75°C


xx Attenuation 01 - 25dB

P/N Description
L-ATT-SC/UPC-MF-xx     FO attenuator SC/UPC plug/jack, xxdB, 1310/1550nm
