FO Cables

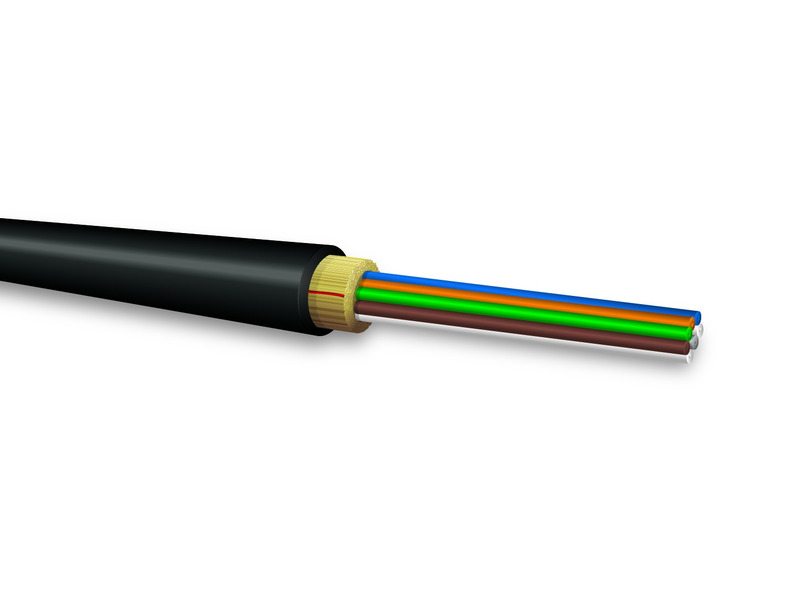

Military D-Series Distribution Mil-Tac Cable 24G62,5/125μ
P/N: MILTAC-D24G62
Military D-Series Distribution Mil-Tac Cable 24G62,5/125μ
Technical data
| Impact Resistance: | 200 Impacts |
| Crush Resistance: | 440 N/cm |
| Flex Resistance: | 2,000 Cycles |
| Operating Temperature: | -55°C to 85°C |
| Storage Temperature: | -70°C to 85°C |
| Fiber Count | Diameter mm (in) | Weight kg/km (lbs/1,000′) | Installation Tensile Load N (lbs) | Operational Tensile Load N (lbs) | Minimum Bend Radius Installation cm (in) | Minimum Bend Radius Operational cm (in) |
|---|---|---|---|---|---|---|
| 24 | 8,5 (0,33) | 56 (38) | 3,000 (670) | 1,000 (220) | 13,6 (5,4) | 6,8 (2,7) |
