FO Cables

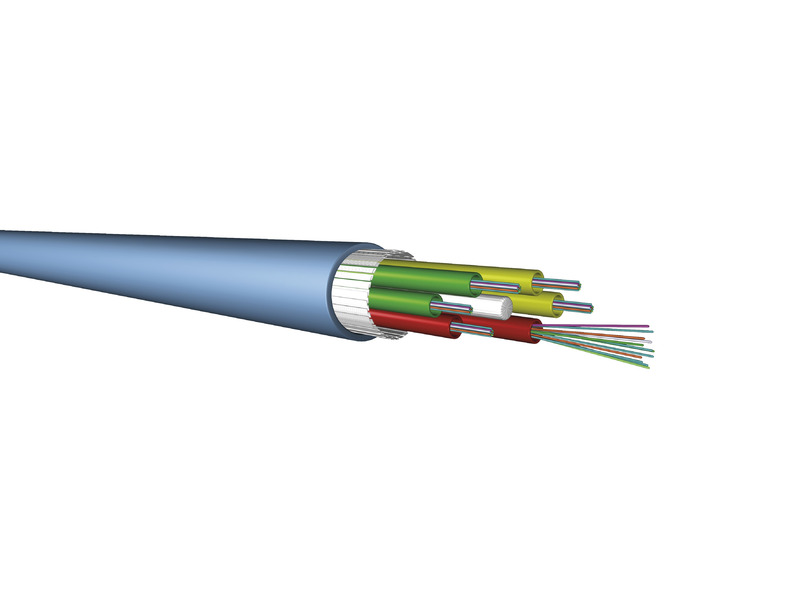

FO Universal Cable with non-metallic rodent protection 24G50/125µm OM3 6.0kN

P/N: L-U-DQ(ZN)BH024G50-3

Technical data

Standards
ISO 11801 2nd edition EN 187 000
IEC 60794-2 IEC 60794-2-20
EN 50 173-1 IEC 60794-2-21



Construction
Central strength member ø2,5 mm FRP rod
Lose tube ø2,3 mm jelly filled loose tubes, with 2 – 12 fibers each, up to 22 tubes in two layers, for lay-up
Water blocking The core is water blocked using swellable tape and tread
Wrapping Polyester nonwoven
Strain Relief Glasroving elements
Ripcord Polyester ripcord for easy slitting of the sheath
Sheath 1,5 mm blue FireBur®, UV stabilized, EN 50290-2-27



Fire rating
IEC 60332-1-2 Single vertical wire test
IEC 60754-1 No halogens
IEC 60754-2 No acid matters
IEC 61034-2 No dense smoke



Heat of combustion
Fiber count;
6 fiber/tube		 Fiber count;
8 fiber/tube		 Fiber count;
12 fiber/tube		 MJ/km KWh/m
6-36
 8-48
 12-72 2200 0,61



Physical properties
Tensile strength (dynamic) E1 6000 N
Tensile strength (permanent) E1 4000 N
Compressive strength (crush) E3 3000N
Impact E4 25 Nm
Torsion E7 5 cycles ± 1 turn
Kink E10 The cables do not form a kink when a loop is drawn together to a diameter 12 times the cable nominal diameter
Temperature range F1 The cables can bear temperature cycling between -40°C to +70°C.
    The cables will operate without any attenuation variation (≤0,05 dB) in the temperature interval -30°C to +60°C.
    The cables will operate with a maximum attenuation variation of 0,1 dB/km in the temperature interval -40°C to +70°C.
Water penetration F5B No water on free end



Mechanical properties
Fiber count;
6 fiber/tube		 Fiber count;
8 fiber/tube		 Fiber count;
12 fiber/tube		 Nominal
diameter		 Nominal
cable weight		 Minimum
bending radius
6-36 8-48 12-72 13,0mm 145 kg/km 160



Fiber Characteristics
Fibertype C12: MaxCap™ 300 OM3 multi mode fiber
Fiber amount 24
Bandwidth (MHz*Km) ≥1500/ ≥500 (850nm/1300nm)
Attenuation (dB/km) 850nm ≤ 3,0 - 1300nm ≤ 1,0
Numerical Apperture 0,200 ± 0,015
Mode Field Diameter 50 ± 2,5µm
Cladding Diameter 125,0µm ± 1,0µm
Primary Coating Diameter 242,0µm ± 7,0µm
P/N Description
L-U-DQ(ZN)BH004G50-3     FO Universal Cable with non-metallic rodent protection 4G50/125µm OM3 1.5kN
L-U-DQ(ZN)BH008G50-3     FO Universal Cable with non-metallic rodent protection 8G50/125µm OM3 1.5kN
L-U-DQ(ZN)BH012G50-3     FO Universal Cable with non-metallic rodent protection 12G50/125µm OM3 1.5kN
L-U-DQ(ZN)BH024G50-3     FO Universal Cable with non-metallic rodent protection 24G50/125µm OM3 6.0kN
L-U-DQ(ZN)BH048G50-3     FO Universal Cable with non-metallic rodent protection 48G50/125µm OM3 6.0kN
L-U-DQ(ZN)BH072G50-3     FO Universal Cable with non-metallic rodent protection 72G50/125µm OM3 6.0kN
L-U-DQ(ZN)BH096G50-3     FO Universal Cable with non-metallic rodent protection 96G50/125µm OM3 6.0kN
L-U-DQ(ZN)BH144G50-3     FO Universal Cable with non-metallic rodent protection 144G50/125µm OM3 6.0kN
