FO Breakout cable 16G50/125µ OM3 LSOH 2,0mm
P/N: L-IVHH16G50-OM3-2.0
FO Breakout cable 16G50/125µ OM3 LSOH 2,0mm
Technical data
| Fiber Amount: | 16 |

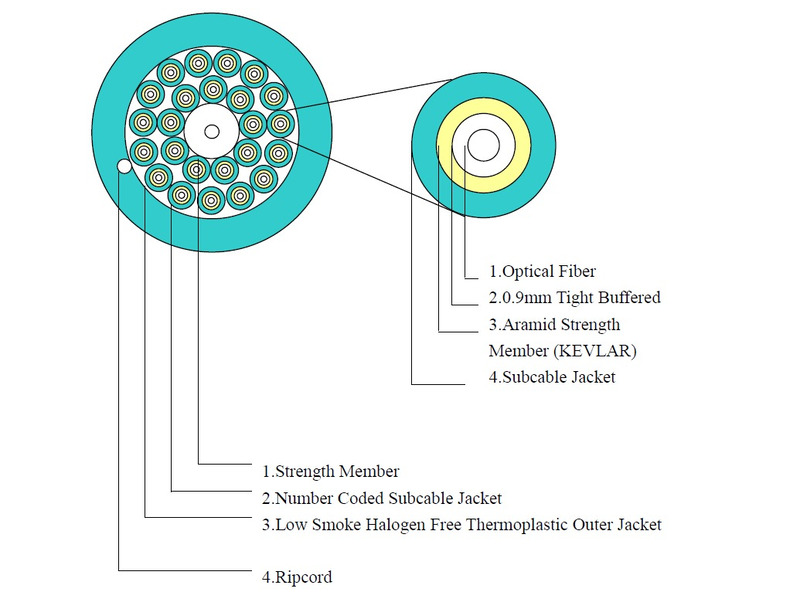

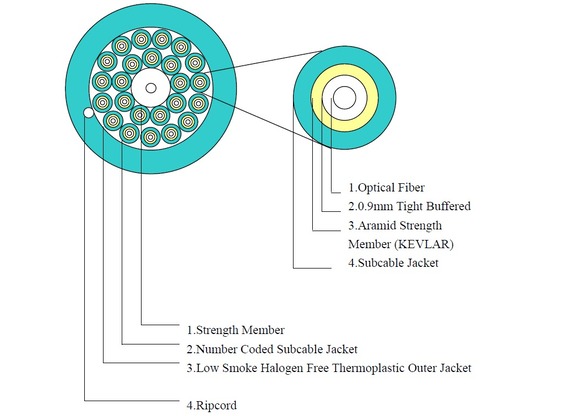

| Construction: | 5 + 11 |
| Outer Diameter: | 11,4mm |
| Tolerance: | ± 0,5mm |
| Fiber Type: | MM-OM3, 50/125µ, Corning InfiniCor SX+ |
| Secondary Coating: | 900µ, easy strippable |
| Subcable Diameter: | 2,0 (± 0,1mm) |
| Strength Members: | Aramid yarns |
| Outer Jacket: | LSOH (Halogen free, low smoke, flame retardant thermoplastic compound) |
| Jacket Colour: | Aqua |
| Standard printing: | “t d e – IVHH16G50-OM3-2,0” and sequential meter marking + Lot number |
| Bandwidth (MHz*Km): | ≥ 1500/ ≥ 500 (850nm/1310nm) |
| Attenuation (dB/km): | 850nm ≤ 3,0 - 1310nm ≤ 1,0 |
| Numerical Apperture: | 0,200 ± 0,015 |
| Mode Field Diameter: | 50 ± 2,5µm |
| Cladding Diameter: | 125,0µm ± 1,0µm |
| Primary Coating Diameter: | 245,0µm ± 5,0µm |
| Fiber Amount: | 16 |
| Weight: | 120 kg/km |
| Tensile load: | 2200 N |
| Bending radius: | 20 x outer diamter |
| Operating temperature: | -5°C to + 60°C |
| Fire resistance: | Pass (EN 50266, IEC 60332-3) |
| Halogen content: | Free (EN 50267, IEC 60754) |
| Smoke density: | Low (EN 50268, IEC 61034-1/2) |
| Characteristics: | Fiber and aramid yarn free movable in the compound |
| Identification: | Numbers, min. every 25cm on subcables |
