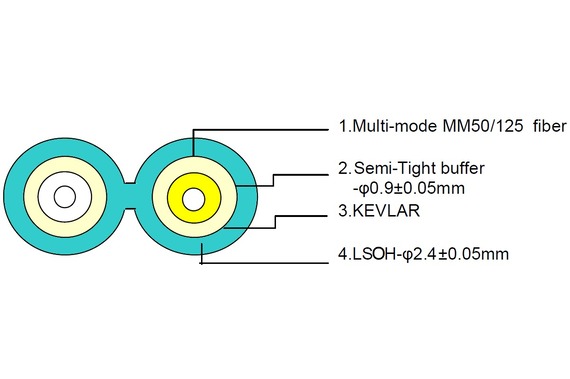

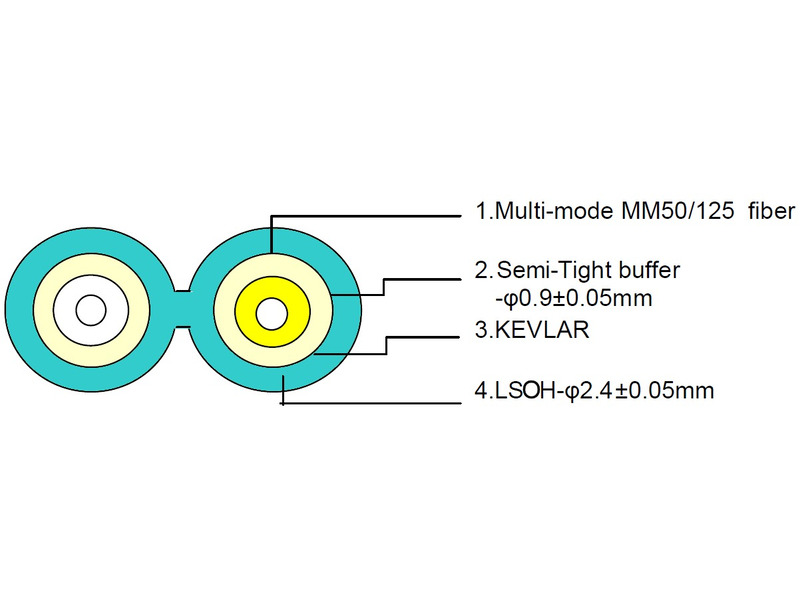

FO Patch cord 50/125µ Duplex OM3 LSOH 2,4mm
P/N: L-IVH02G50-OM3-2.4
FO Patch cord 50/125µ Duplex OM3 LSOH 2,4mm
Description
Technical data
| Fiber Amount: | 2 |
| Fiber Type: | MM-OM3, 50/125µ, Corning InfiniCor SX+ |
| Secondary Coating: | 900µ, easy strippable |
| Strength Members: | Aramid yarns |
| Outer Jacket: | LSOH (Halogen free, low smoke, flame retardant thermoplastic compound) |
| Jacket Colour: | Aqua |
| Outer Diameter: | 2,4 (± 0,1mm) |
| Standard printing: | “t d e – IVH02G50-OM3-2,4” and sequential meter marking + Lot number |
| Apllications: | Patchcords/ Pigtails |
| Bandwidth (MHz*Km): | 1500/500 (850nm/1300nm) |
| Attenuation: | 850nm (max): 2,3 dB/km |
| 1300nm (max): 0,6 dB/km | |
| Numerical Apperture: | 0,200 ± 0,015 |
| Mode Field Diameter: | 50 ± 2,5µm |
| Cladding Diameter: | 125,0µm ± 2,0µm |
| Primary Coating Diameter: | 242,0µm ± 5,0µm |
| Weight: | 12 kg/km |
| Operational tensile load: | 210 N |
| Bending radius: | 15 x outer diamter |
| Operating temperature: | -5°C to + 60°C |
| Fire resistance: | Pass (EN 50266, IEC 60332-3) |
| Halogen content: | Free (EN 50267, IEC 60754) |
| Smoke density: | Low (EN 50268, IEC 61034-1/2) |
| Characteristics: | Fiber and aramid yarn free movable in the compound |
