FO Patch cord 9/125µ Duplex G.652.D LSOH 2,4mm
P/N: L-IVH02E09-2.4

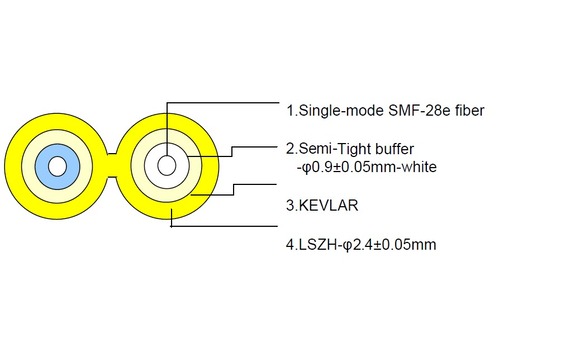

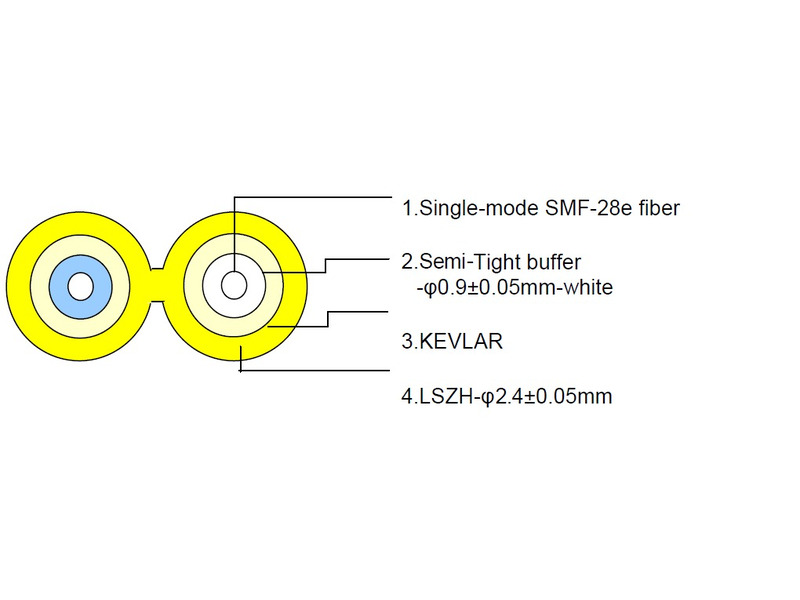

FO Patch cord 9/125µ Duplex G.652.D LSOH 2,4mm
Technical data
| Fiber Amount: | 2 |
| Fiber Type: | SM-G.652.D, 09/125µ, Corning SMF-28e+, OS2 |
| Secondary Coating: | 900µ, easy strippable |
| Strength Members: | Aramid yarns |
| Outer Jacket: | LSOH (Halogen free, low smoke, flame retardant thermoplastic compound) |
| Jacket Colour: | Yellow |
| Standard printing: | “t d e – IVH02E09-2,4” and sequential meter marking + Lot number |
| Applications: | Patchcords/ Pigtails |
| Cut-Off Wavelenght: | ≤ 1260 nm |
| Attenuation: | 1310nm (max.): 0.35 dB/km |
| 1383nm (max.): 0.35 dB/km | |
| 1550nm (max.): 0.20 dB/km | |
| Dispersion (ps/(nm*Km)): | ≤ 18,0/≤ 22,0 (1550nm/1625nm) |
| Mode Field Diameter: | 9,2 ± 0,4µm |
| Cladding Diameter: | 125,0µm ± 0,7µm |
| Primary Coating Diameter: | 242,0µm ± 5,0µm |
| Weight: | 12,0 kg/km |
| Operational Tensile load: | 210 N |
| Bending radius: | 15 x outer diamter |
| Operating temperature: | -5°C to + 60°C |
| Fire resistance: | Pass (EN 50266, IEC 60332-3) |
| Halogen content: | Free (EN 50267, IEC 60754) |
| Smoke density: | Low (EN 50268, IEC 61034-1/2) |
| Characteristics: | Fiber and aramid yarn free movable in the compound |
