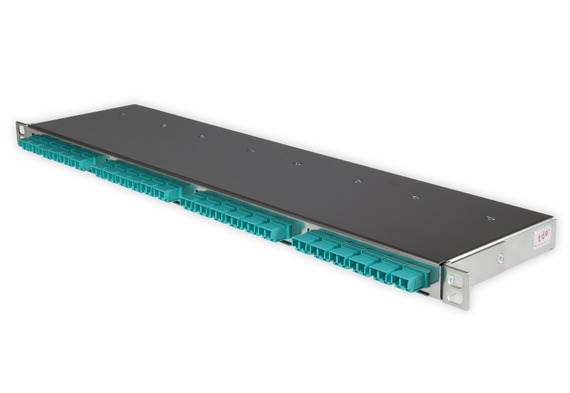

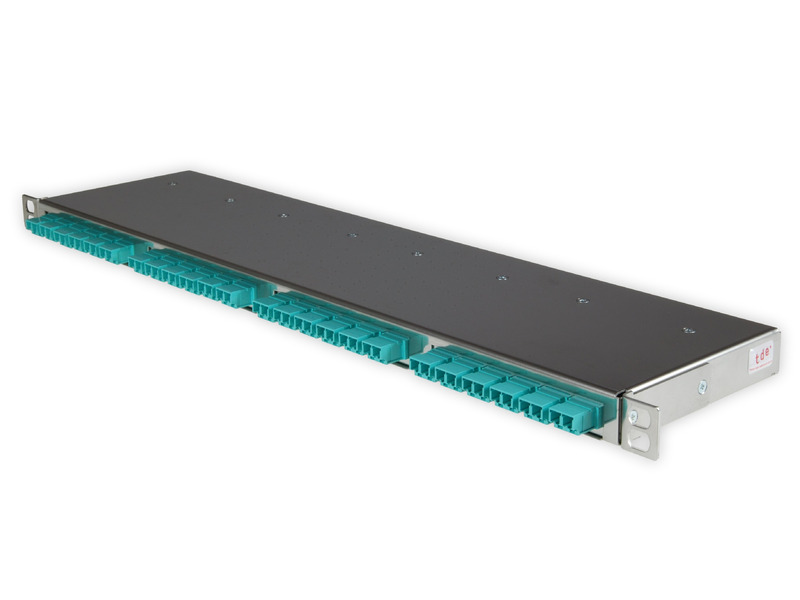

tSML - 19"/0.5U, MPO with Pins/24x LC Duplex 50/125µ OM4

P/N: TSML-M24LCDK/MPP50G4

Description

The end faces of the connectors are optimized by means of Lasercleaving and machine polish. The MPO plug has a defined fiber hieght of 1 - 3,5µ. The max. adjacent fiber height difference is 0,2µm and for all fibers 0,3µm. All system components (modules, trunk cables and patch cords) are co-ordinated for the reaching of the performance particularly. The module is marked with sequential serial number and article number. The modules are ROHS compliant.

Technical data

Optical Performance:
FiberTypeWavelengthIL (dB) typicalIL (dB) max.RL (dB) min.
50/125µ OM4 LC 850nm ≤ 0,10 0,25 35
50/125µ OM4 MPO 850nm ≤ 0,17 0,35 25
50/125µ OM4 Module 850nm ≤ 0,20 0,35 25
FO Patch Panels
Box: stainless steel
Entry: 4 x MPO male adapter / 4 x Telco Male shielded connectors for locking by screws / 4 x TP Trunk Cable back
Exit: 24 x Duplex adapters / 24 x RJ45 Jacks shielded front
Strain relief: about housing / integrated at the single RJ45 Jacks
Dimensions: 19", 0,5U, depth 11cm
  19" Rack mount kit has to be ordered seperately
  QS-Managementsystem ISO 9001, ISO 14001 and TL 9000
FO Adapters & Couplers

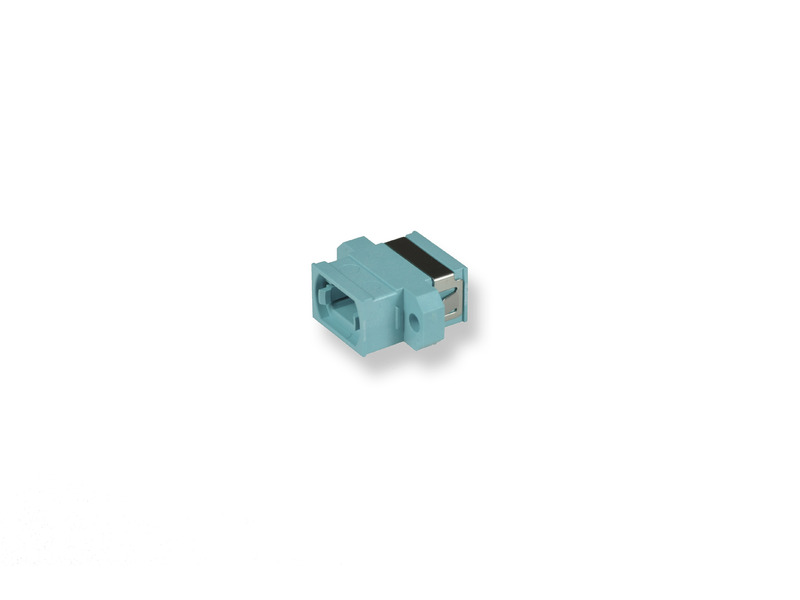

Type: MPO/MTP®
Application: Multimode OM3
Design: with Flange
Connector style: MPO/MTP®
Key Orientation: Typ A, Key up/down
Color: Aqua
Material: Plastic
Sleeve: --
Shutter: --
Standards: IEC 61754-7
TIA 604-5


FO Connectors
FiberTypeWavelengthIL (dB) typicalIL (dB) maxRL (dB) min
50/125µ OM4 LC 850nm ≤ 0,10 0,25 35
FO Connectors
FiberTypeWavelengthIL (dB) typicalIL (dB) maxRL (dB) min
50/125µ OM4 MPO/MTP® 850nm ≤ 0,17 0,35 25
FO Connectors
FiberTypeWavelengthIL (dB) typicalIL (dB) maxRL (dB) min
50/125µ OM4 Modul 850nm ≤ 0,20 0,35 25
P/N Description
TSML-M24LCADK/MPP09E     tSML - 19"/0.5U, MPO with Pins/24x LC APC Duplex 9/125µ OS2
TSML-M24LCDK/MPP09E     tSML - 19"/0.5U, MPO with Pins/24x LC Duplex 9/125µ OS2
TSML-M24LCDK/MPP50G3     tSML - 19"/0.5U, MPO with Pins/24x LC Duplex 50/125µ OM3
TSML-M24LCDK/MPP50G4     tSML - 19"/0.5U, MPO with Pins/24x LC Duplex 50/125µ OM4
TSML-RM-19/0.5HE-KIT     tSML - 19" rack mount kit for 1x module 19"/ 0,5U
TSML-RM-19/1HE-KIT     tSML - 19" rack mount kit for 2x modules 19"/ 1U
