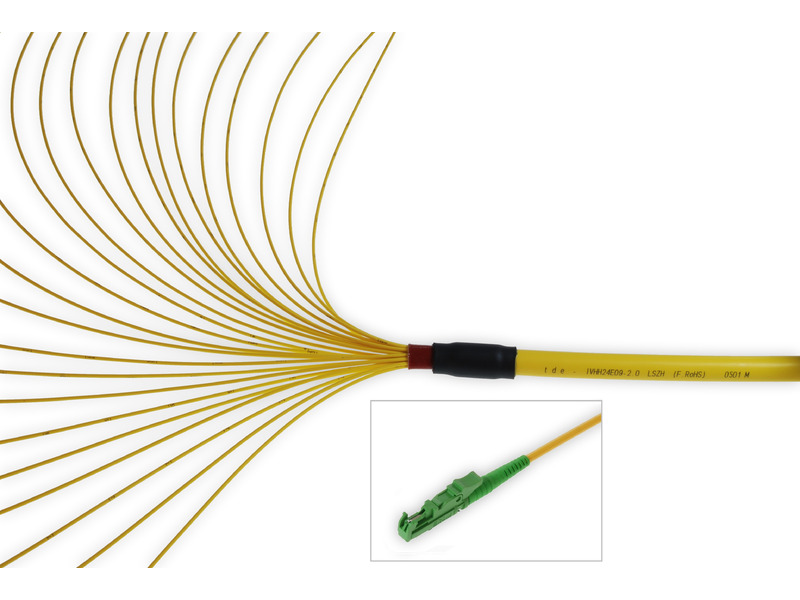

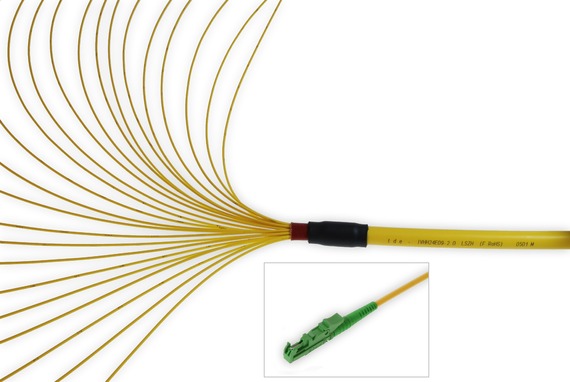

FO Breakoutl cable E2000 APC/E2000 APC 4E9/125µ OS2 LSHF, Length: xxxx
P/N: L-E2A/E2A09V04Exxxx
FO Breakoutl cable E2000 APC/E2000 APC 4E9/125µ OS2 LSHF, Length: xxxx
Technical data
| Type: | E2000 APC |
| Ferrule: | Ceramic |
| Connector colour: | Green |
| Boot colour: | Green |
| Manufacturer: | R&M |
| Cable: | FO Breakout cable I-VHH 4 - 24, tight buffer (2,0 mm ø), with one-sided Insertion tool |
| Fire rating: | IEC 60332-1-2 Single vertical wire test |
| IEC 60754-1 No halogens | |
| IEC 60754-2 No acid matters | |
| IEC 61034-2 No dense smoke | |
| Standards: | EN 187 000, IEC 60794-2, |
| IEC 60794-2-20, IEC 60794-2-21, | |
| ISO 11801 2nd edition, EN 50 173-1 | |
| Tests: | Interferometer, Insertion Loss, Return Loss and Visual Final Inspection; all measured values are electronically archived |
| QS-Managementsystem ISO 9001, ISO 14001 and TL 9000 |
| Fiber | Type | Wavelength | Insertion loss (dB) max. | Return loss (dB) min. |
|---|---|---|---|---|
| 9/125µ OS2 |
E2000 APC |
1550nm | ≤ 0,45 | ≥ 60 |
xxxx - stands for the cable length in m (every length available)
