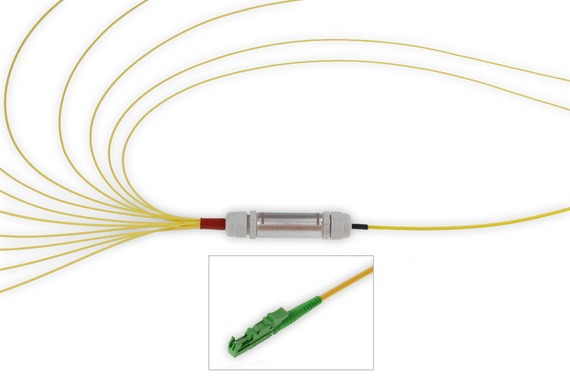

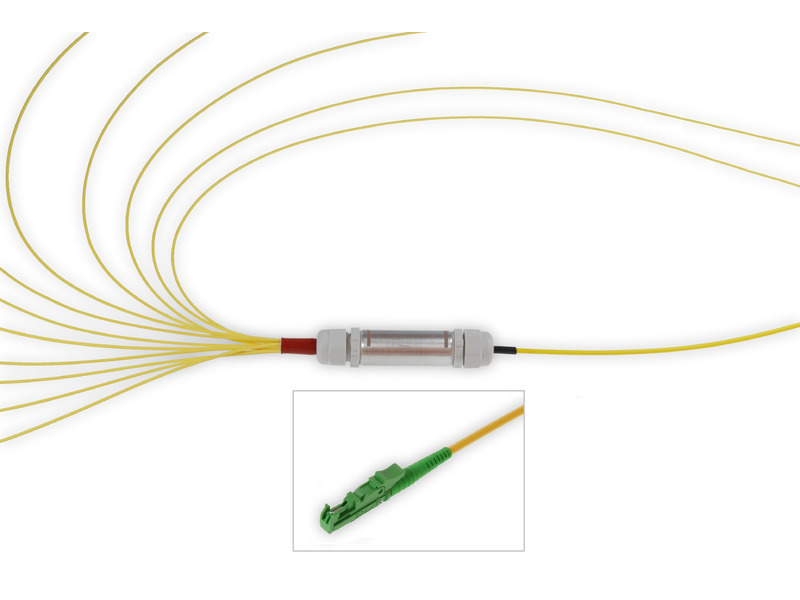

FO Universal Cable E2000 APC/E2000 APC 12E9/125µ OS2 LSHF, Length: xxxx
P/N: L-E2A/E2A09B12Exxxx
FO Universal Cable E2000 APC/E2000 APC 12E9/125µ OS2 LSHF, Length: xxxx
Technical data
| Type: | E2000 APC |
| Ferrule: | Ceramic |
| Connector colour: | Green |
| Boot colour: | Green |
| Manufacturer: | R&M |
| Depositing Jacket: | 620mm |
| Fan-out head: | 100mm |
| Longest Fiber: | 620mm |
| Shortest fiber: | 500mm |
| Increment: | 40mm |
| Parallel fibers: | 4 pieces |
| Max. Ø allocation: | 22mm |
| Wide of the panel inclusion: | 14,5mm |
| Max. panel thickness for inclusion: | 2mm |
| Pulling sock diameter Ø: | 33,1/ 40mm |
| Cable: | Universal indoor/outdoor cable, stranded loose tube, 12 – 96 fibers, 12 fibers per ø 2.3 mm tube, with non-metallic rodent protection |
| Nominal diameter: | 10,5mm (12-72 fibers) |
| 12,0mm (84-96 fibers) | |
| Fire rating: | IEC 60332-1-2 Single vertical wire test |
| IEC 60754-1 No halogens | |
| IEC 60754-2 No acid matters | |
| IEC 61034-2 No dense smoke | |
| Standards: | EN 187 000, IEC 60794-2, |
| IEC 60794-2-20, IEC 60794-2-21, | |
| ISO 11801 2nd edition, EN 50 173-1 | |
| Tests: | Interferometer, Insertion Loss, Return Loss and Visual Final Inspection; all measured values are electronically archived |
| QS-Managementsystem ISO 9001, ISO 14001 and TL 9000 |
| Fiber | Type | Wavelength | Insertion loss (dB) max. | Return loss (dB) min. |
|---|---|---|---|---|
| 9/125µ OS2 |
E2000 APC |
1550nm | ≤ 0,45 | ≥ 60 |
xxxx - stands for the cable length in m (every length available)
