Converters

tMC - Media Conversion Module 12x 1000BaseT (RJ-45) to 2x 1000BaseSX (MTP®/MPO)

P/N: TMC-CCH-MCM12-RJ-70S

Technical data

Standards: IEEE Std 802.3TM - 2005
Status LEDs: Port 1 (TP): ON green = TP Link
ON orange = unit is operating
over temperature range
  Port 2 (TP): ON green = TP Link
ON orange = No link but power is detected
  Port 4 (TP): ON green = TP Link
ON orange = Fan Fault
  Port 3, 5-12 (TP): ON green = TP Link
  Port 1-12 (Fiber): ON green = Fiber Link
Dimensions: Width: 1.4" [36 mm]
Depth: 6.1" [155 mm]
Height: 6.1" [155 mm]
Power Consuption:
 17 watts, 1.41A at 12VDC
Maximum Packet Size: 10 KB
MTBF: 36,063 hours [MIL-217F2]
324,255 hours [Bellcore 7]
Environment: 0 – 40°C operating
-15°C – 65°C storage
5-95% humidity non-condensing
0-10,000 ft. altitude
Shipping Weight: 2 lbs. [0.9 kg]
Compliance: EN55024; CISPR22/EN55022
Class A; FCC Class A; CE Mark; UL60950
Warranty: Lifetime



Part NumberDescription

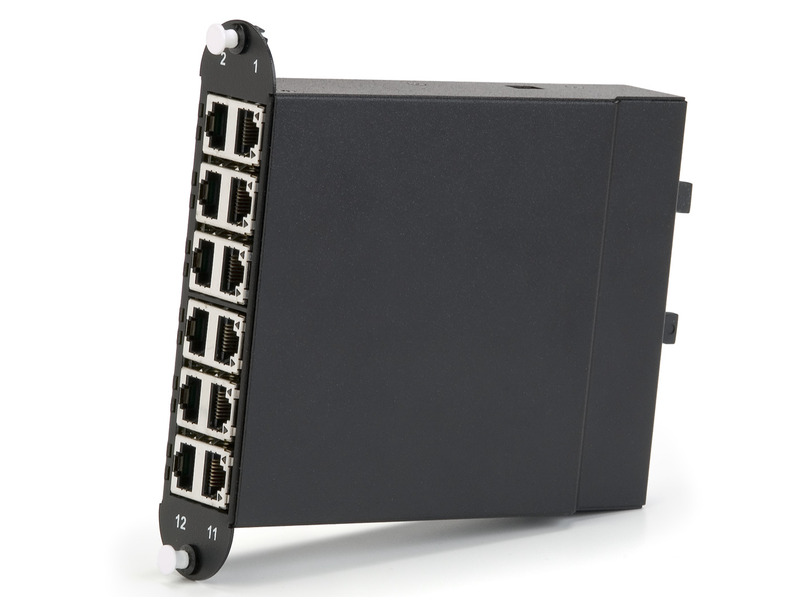

TMC-CCH-MCM12-RJ-70S tMC - Media Conversion Module fits in the Rack Mount Enclosure  19"/1U and 19"/4U
12x 1000BaseT (RJ-45) to 2x 1000BaseSX (MTP®/MPO)
  50/125μm fiber 750 m/2460 ft.
62.5/125μm fiber 350 m/1148 ft.
Link Budget: 8.5 dB

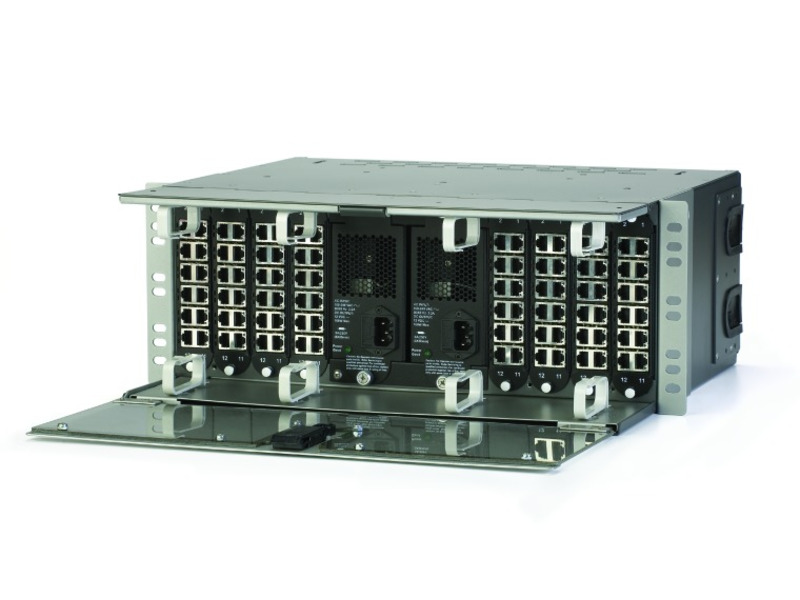

TMC-PCH-04U-00 tMC - 4U Rack Mount Enclosure Solution accommodates up to 8 Media Converter Modules (96 RJ-45 ports)
  includes 2 power supplies

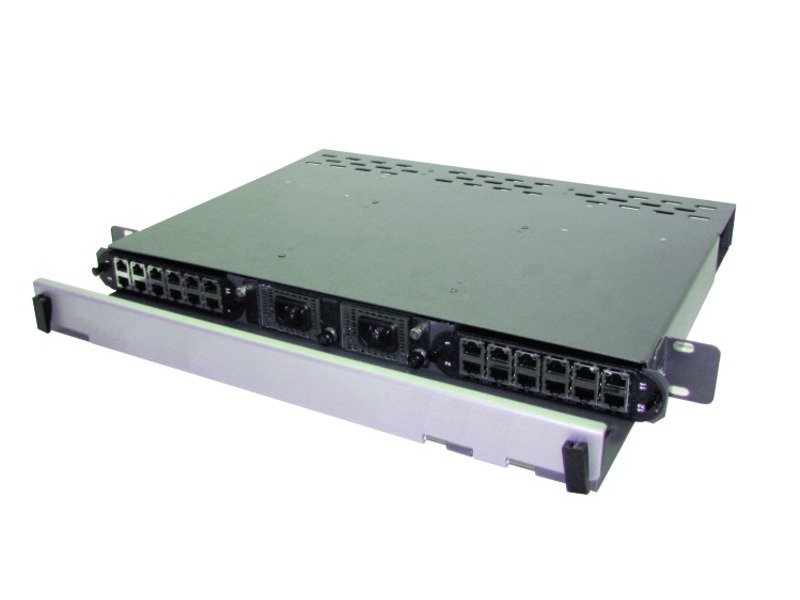

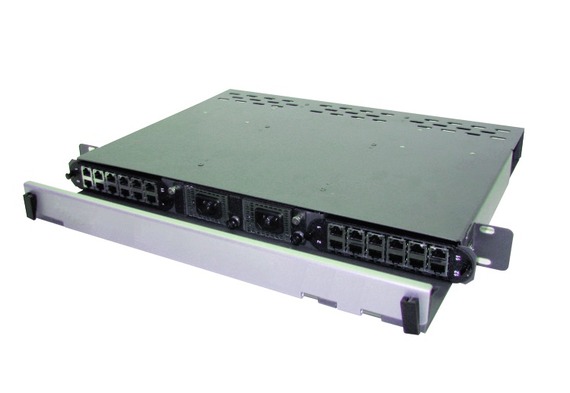

TMC-PCH-01U-00 tMC - 1U Rack Mount Enclosure Solution accommodates up to 2 Media Converter Modules (24 RJ-45 ports)
  includes 2 power supplies
TMC-PCH-04U-PWR tMC - Single power supply for Rack Mount Enclosure 19"/4U
TMC-PCH-01U-PWR tMC - Single power supply for Rack Mount Enclosure 19"/1U
TMC-PCH-04U-PWR-MGMT tMC - Power Supply SNMP Management Module for Rack Mount Enclosure 19"/4U
TMC-PCH-01U-PWR-MGMT tMC - Power Supply SNMP Management Module for Rack Mount Enclosure 19"/1U
P/N Description
TMC-CCH-MCM12-RJ-70S     tMC - Media Conversion Module 12x 1000BaseT (RJ-45) to 2x 1000BaseSX (MTP®/MPO)
