FO Patch Cords Simplex

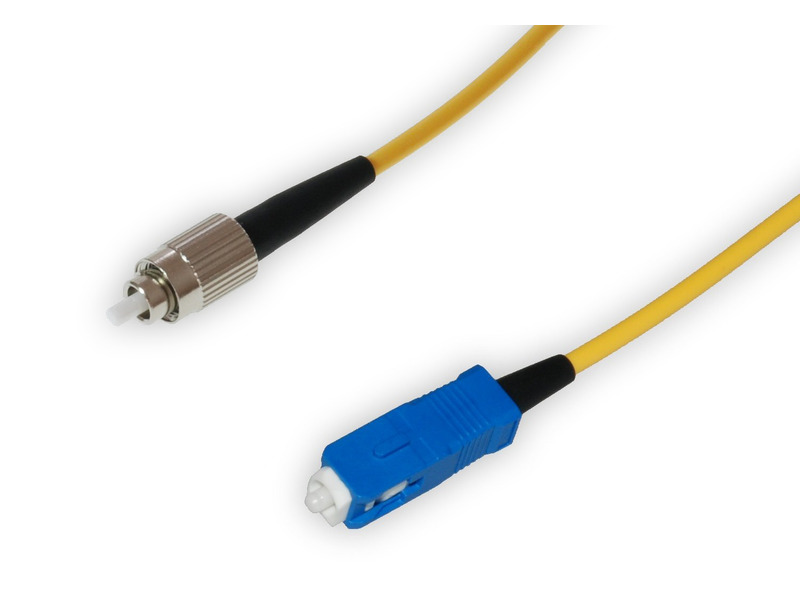

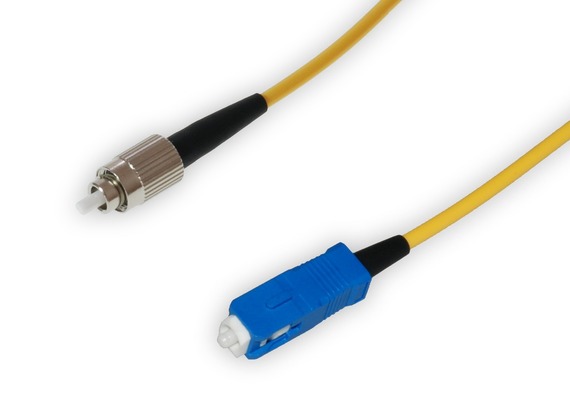

FO-Patch cord FC PC/SC tde 9/125µ Simplex LSOH Length: xxxxx

P/N: L-FC/SC09Sxxxxx

Technical data

Connector 1:
Type: FC PC
Ferrule: Ceramic
Connector colour:
 Metal
Boot colour:
 Black
Manufacturer: tde



Connector 2:
Type: SC
Ferrule: Ceramic
Connector colour: Blue
Boot colour:

Black
Manufacturer: tde



Cable:

Type:

 I-VH01E09/125µ

Strength Members: Aramid yarns
Secondary Coating: 900μ, easy strippable
Outer Jacket: LSOH
Jacket Colour: Yellow
Cable diameter single element: 2,4 mm
Optical Characteristics: Fibertype
 SM-G.652.D, 09/125μ,
Corning SMF-28e+, OS2
  Core Compact core construction
  Cut-Off Wavelength ≤ 1260 nm
  Attenuation (dB/km) 1310nm (typ./max): 0,33/0,35
1550nm (typ./max): 0,19/0,20
  Dispersion (ps/(nm*Km)) 3,0/18 (1310nm/1550nm)
  Mode Field Diameter 9,2 ± 0,4μm bei 1310nm
  Cladding Diameter 125,0μm ± 0,7μm
Mechanical Characteristics:

Temperature range

 Operation -5°C to +60°C
  Bending radius 10 x Outer diameter
Tests:

Interferometer, Insertion Loss, Return Loss and Visual Final Inspection; all measured values are electronically archived

QS-Managementsystem ISO 9001, ISO 14001 and TL 9000


Manufacturer: t d e




Optical performance
Fiber Type Wavelength Insertion loss (dB) max. Return loss (dB) min.
09/125µ FC PC 1550 nm ≤0,45 ≥45
09/125µ SC 1550 nm ≤0,45 ≥45



Length: xxxxx in cm

P/N Description
L-FCA/SCA09Sxxxxx     FO-Patch cord FC APC/SC APC tde 9/125µ Simplex LSOH Length: xxxxx
L-FC/SC09Sxxxxx     FO-Patch cord FC PC/SC tde 9/125µ Simplex LSOH Length: xxxxx
L-FC/SC9-09Sxxxxx     FO-Patch cord FC PC/SC APC 9° tde 9/125µ Simplex LSOH Length: xxxxx
L-FCU/SCU09Sxxxxx     FO-Patch cord FC UPC/SC UPC tde 9/125µ Simplex LSOH Length: xxxxx
