FO Pigtails

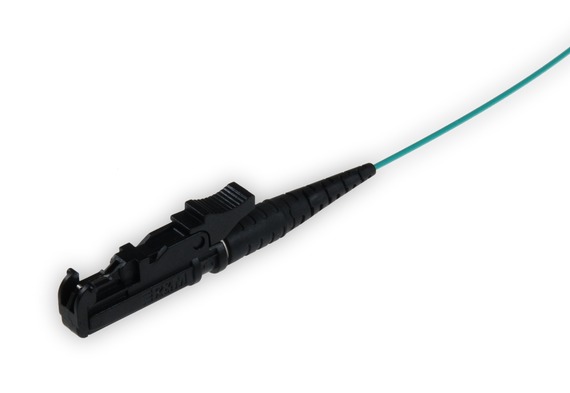

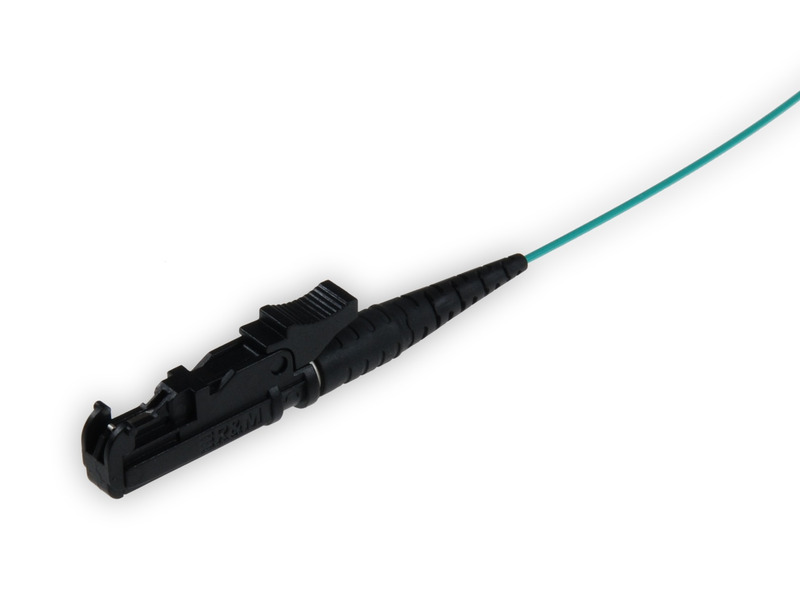

FO Fiberpigtail E2000 50/125µ OM3 Length: xxxxx

P/N: L-E2/-50F3-xxxxx

Technical data

Cable: I-V 1G 50/125, tight buffer
Fiber type: MM-OM3, 50/125µ, Corning InfiniCor SX+
Manufacturer: Corning
Core Diameter: 50 ± 2,5µm
Cladding Diameter: 125 ± 2,0µm
Buffer: Tight
Outer Coating: 900µm
Bandwidth (MHz*Km): 1500/500 (850nm/1300nm)
Attenuation: 850nm (max.): 2,3 dB/km
  1300nm (max.): 0,6 dB/km
Connector: E2000
Test:

Interferometer, Insertion Loss, Return Loss and Visual Final Inspection; all measured values are electronically archived

QS-Managementsystem ISO 9001, ISO 14001 and TL 9000
Length: xxxxx cm



Optical Performance
FiberTypeWavelengthInsertion loss (dB) max.Return loss (dB) min.
50/125µ OM3 E2000 1300nm ≤0,45 ≥20
P/N Description
L-E2/-09Fxxxxx     FO Fiberpigtail E2000 9/125µ OS2 Length: xxxxx
L-E2/-50F3-xxxxx     FO Fiberpigtail E2000 50/125µ OM3 Length: xxxxx
L-E2/-50Fxxxxx     FO Fiberpigtail E2000 50/125µ OM2 Length: xxxxx
L-E2/-62Fxxxxx     FO Fiberpigtail E2000 62,5/125µ OM1 Length: xxxxx
L-E2A/-09Fxxxxx     tde - FO Fiberpigtail E2000 APC 9/125µ OS2 Length: xxxxx
